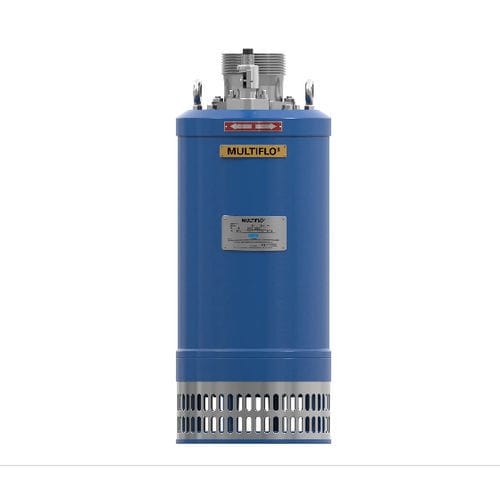

Centrifugal pump Multiflo® SJG
waterwith electric motorsubmersible

Centrifugal pump - Multiflo® SJG - Weir Minerals - water / with electric motor / submersible
Centrifugal pump - Multiflo® SJG - Weir Minerals - water / with electric motor / submersible
Centrifugal pump - Multiflo® SJG - Weir Minerals - water / with electric motor / submersible - image - 2
Centrifugal pump - Multiflo® SJG - Weir Minerals - water / with electric motor / submersible - image - 3
Centrifugal pump - Multiflo® SJG - Weir Minerals - water / with electric motor / submersible - image - 4
Centrifugal pump - Multiflo® SJG - Weir Minerals - water / with electric motor / submersible - image - 5
Add to favorites
Compare this product

Characteristics

Technology
centrifugal
Fluid
water
Operation
with electric motor
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
dewatering
Material
stainless steel
Protection level
standard
Other characteristics
mechanical, adjustable, automatic, portable, seal, tandem, coated
Flow

1.1 m³/h
(38.84613 ft³/h)

Head

325'00"
(99.06 m)

Power

Max.: 80 kW
(108.77 hp)

Min.: 2.2 kW
(2.99 hp)

Fluid temperature

104 °F
(40 °C)

Description

Our Multiflo® SJG portable submersible pump is lightweight and designed for safe, efficient and reliable dewatering applications. It is also available with or without a pump float. The Multiflo® SJG portable submersible pump consists of a lightweight pump design and proven materials of construction to create a dewatering pump solution that is both efficient and reliable. This submersible dewatering pump comes standard with a tandem TC/TC mechanical seal, an adjustable nitrile rubber lined diffuser and wear plate, epoxy coated casings, automatic thermal overloads within the motor stator windings, sacrificial zinc anodes and one meter of stainless steel outer braiding at the pump cable entry. In combination with its portable lightweight design, the Multiflo® SJG submersible pump contains features that: Maximise wear life Increase corrosion and erosion resistance Provide strain relief and enhanced durability Protect the motor from overheating and combat premature pump failure Facilitate ease of installation, maintenance and adjustment Features and Benefits Portable and light-weight The Multiflo® SJG pump can be used for both stationary and portable submersible pump applications. Available with a pump float The Multiflo® SJG submersible dewatering pump is available with a float depending on the application. Please speak with our team of dewatering for more information about the benefits of using a submersible pump with float.
