Fruit juice pasteurizer for dairy productscompact
Add to favorites
Compare this product
Characteristics
- Applications
- fruit juice, for dairy products
- Other characteristics
- compact
Description

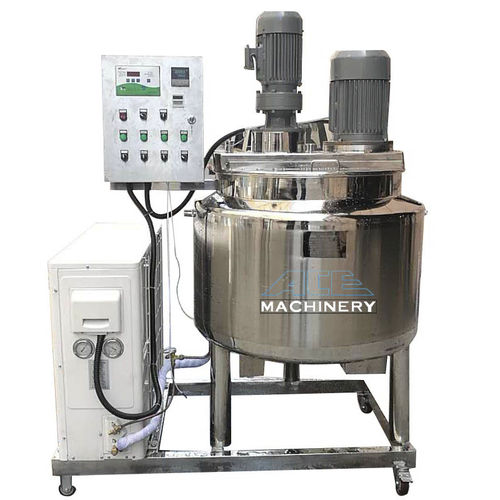

Batch Type Milk /Juice Pasteurizer
It fits to heat, sterilizer, keep warm and cool the heat sensitive liquid such as the fresh milk, beverage and juice etc. This machine is of high recycle, energy saving, and reducing cost, compact constructure, simple operation and convenient maintain.
Controlling methods: Manual control system –Or PLC control system;
Main components: Material pump, balance tank, heating system, temperature control and CIP cleaning ball, control panel
Product capacity: 100L to 500L per batch
Sterilizing temperature :75-95℃ (Adjustable)
Keeping time: 15-60Min(Adjustable)
It can be cooled to normal temperature after pasteurization;
It can be cooled to 4C degree if equipped with chilling system;
Optional: Be equipped with emulsifier ;
Equipped with ice cooling unit to cooled to 4C
