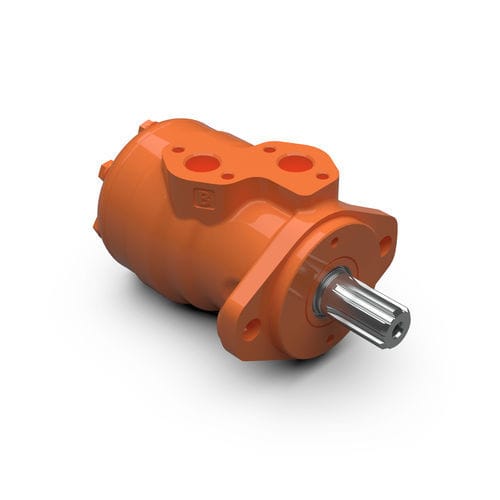

Orbital hydraulic motor OMR X series
variable-displacement

Orbital hydraulic motor - OMR X series - White Drive Motors And Steering - variable-displacement
Orbital hydraulic motor - OMR X series - White Drive Motors And Steering - variable-displacement
Add to favorites
Compare this product

Characteristics

Technology
orbital
Other characteristics
variable-displacement
Pressure

200 bar
(2,901 psi)

Torque

400 Nm
(295.02 ft.lb)

Displacement

Max.: 400 cm³
(13.53 US fl oz)

Min.: 50 cm³
(1.69 US fl oz)

Description

Orbital Motors with state of art shaft seal. A Modular platform, and form and fit with existing applications Improves performance Reduces total cost of ownership Specifications Max. cont. flow [60 lpm] Available with seal protector & speed sensor State of the art high pressure shaft seal Available with end ports and aligned or offset side ports
