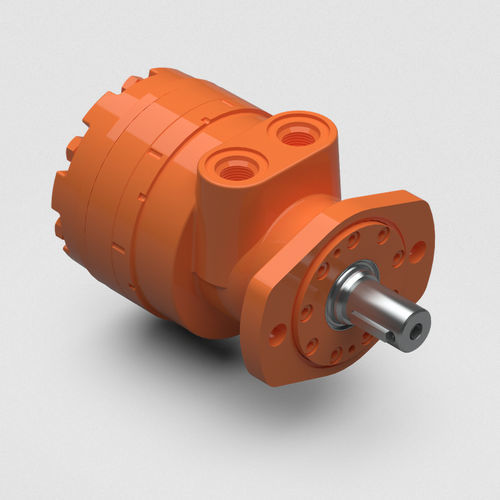

Orbital hydraulic motor RE series
high-pressureindustrial

Orbital hydraulic motor - RE series - White Drive Motors And Steering - high-pressure / industrial
Orbital hydraulic motor - RE series - White Drive Motors And Steering - high-pressure / industrial
Orbital hydraulic motor - RE series - White Drive Motors And Steering - high-pressure / industrial - image - 2
Orbital hydraulic motor - RE series - White Drive Motors And Steering - high-pressure / industrial - image - 3
Orbital hydraulic motor - RE series - White Drive Motors And Steering - high-pressure / industrial - image - 4
Add to favorites
Compare this product

Characteristics

Technology
orbital
Other characteristics
industrial, high-pressure
Pressure

207 bar
(3,002 psi)

Torque

1,096 Nm
(808.37 ft.lb)

Displacement

Max.: 750 cm³
(25.36 US fl oz)

Min.: 120 cm³
(4.06 US fl oz)

Description

STABLE PERFORMANCE AT LOW SPEEDS FOR A WIDE RANGE OF APPLICATIONS Highly efficient and dependable Especially suited for low flow and high pressure (e.g.: AWPsituations) Four bearing options, combined with standard mounting flanges and output shafts, allow the motor to be configured to suit nearly any application Specifications Available with drum brake, max. brake holding torque [565 Nm] Available with drum brake option Available with 4-and 5-bolt hub Available with Wheel and Magneto mount options
