Orbital hydraulic motor OMR series
high-pressurecompact

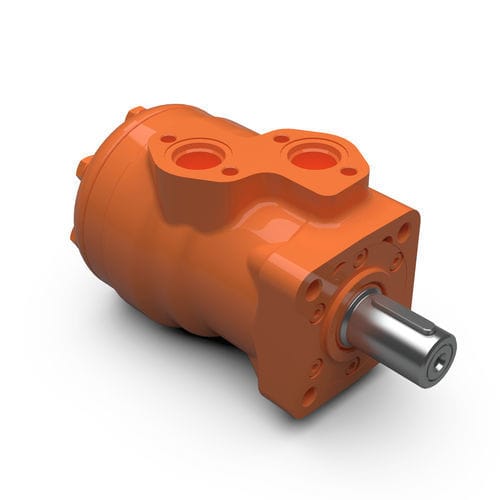

Orbital hydraulic motor - OMR series - White Drive Motors And Steering - high-pressure / compact
Orbital hydraulic motor - OMR series - White Drive Motors And Steering - high-pressure / compact
Orbital hydraulic motor - OMR series - White Drive Motors And Steering - high-pressure / compact - image - 2
Add to favorites
Compare this product

Characteristics

Technology
orbital
Other characteristics
compact, high-pressure
Pressure

175 bar
(2,538 psi)

Torque

580 Nm
(427.79 ft.lb)

Displacement

Max.: 375 cm³
(12.68 US fl oz)

Min.: 50 cm³
(1.69 US fl oz)

Description

Flexible configuration Makes your hydraulic system adaptable to numerous medium-duty needs. Light and compact and therefore easy to install High radial and axial bearing capacity Spool valve integrated with output shaft Gear rim with rollers and suitable for long periods of operation at high pressure Specifications Max. cont. flow [60 lpm] Available with offset side ports and aligned end ports Available with brake Available with ATEX
