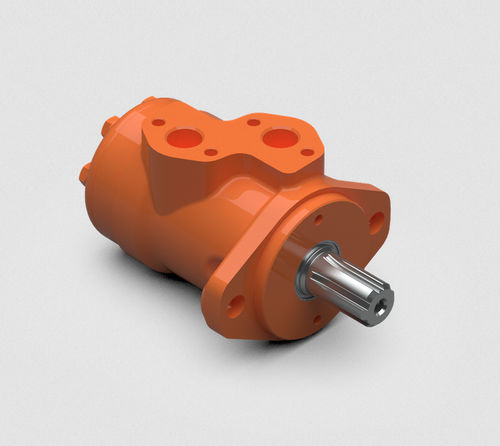

Orbital hydraulic motor OMP series
compact

Orbital hydraulic motor - OMP series - White Drive Motors And Steering - compact
Orbital hydraulic motor - OMP series - White Drive Motors And Steering - compact
Add to favorites
Compare this product

Characteristics

Technology
orbital
Other characteristics
compact
Pressure

140 bar
(2,031 psi)

Torque

300 Nm
(221.27 ft.lb)

Displacement

Max.: 490 cm³
(16.57 US fl oz)

Min.: 25 cm³
(0.85 US fl oz)

Description

Flexible configuration. Makes your hydraulic system adaptable to numerous medium-duty needs. Light and compact and therefore easy to install High radial and axial bearing capacity Spool valve integrated with output shaft Specifications Max. cont. flow [60 lpm] Available with offset side ports, aligned end ports Available with Standard mount options

Catalogs

Other White Drive Motors And Steering products

Orbital Motors
