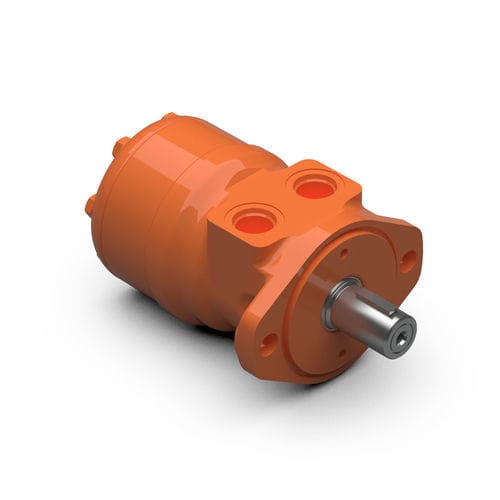

Orbital hydraulic motor DS series
compact

Orbital hydraulic motor - DS series - White Drive Motors And Steering - compact
Orbital hydraulic motor - DS series - White Drive Motors And Steering - compact
Add to favorites
Compare this product

Characteristics

Technology
orbital
Other characteristics
compact
Pressure

138 bar
(2,002 psi)

Torque

455 Nm
(335.59 ft.lb)

Displacement

Max.: 375 cm³
(12.68 US fl oz)

Min.: 50 cm³
(1.69 US fl oz)

Description

FLEXIBLE CONFIGURATION Makes your Hydraulic System adaptable to numerous medium duty needs. Light and compact and therefore easy to install High radial and axial bearing capacity Spool valve integrated with output shaft Gear rim with rollers and suitable for long periods of operation at high pressure Specifications Max. cont. flow [60 lpm] Designed to match Char-Lynn S-series Available with aligned side ports Available with Standard mount options

Catalogs

Other White Drive Motors And Steering products

Orbital Motors
