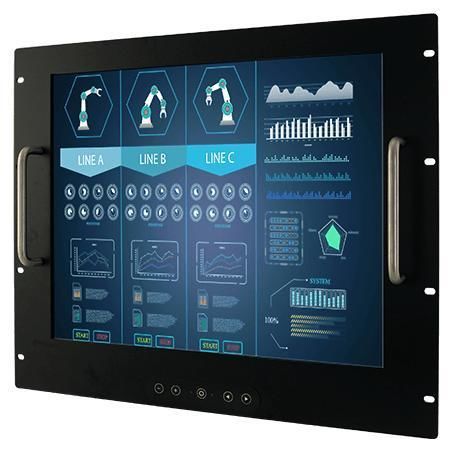

Resistive touch screen monitor R19L300-RKM2

with touchscreenfor industrial machinesfor displays

Overview
The R19L300-RKM2 is a 19-inch rack-mount display designed for quick installation into server racks, cabinets and industrial consoles. It features a pull-out drawer design with metal housing and chrome handles, providing shock protection and space-saving installation for server rooms, security monitoring, room control, factory automation, HMI and warehouse systems. The series supports easy integration with embedded boards and systems via VGA and HDMI interfaces and offers optional touchscreen capabilities for on-screen control.

Key Features

• 19-inch, 1280 x 1024 rack-mount display
• VGA and HDMI video inputs
• Rack mount and VESA mount compatibility
• Metal housing with chrome handles and pull-out drawer

Certifications

• CE
• FCC

Highlights

• Application-focused rack design for server racks, cabinets and industrial consoles
• HDMI and VGA interfaces for broad compatibility with embedded systems
• Optional touchscreen: resistive (default); SAW or protection glass options available
• Fanless metal enclosure suitable for server-room and industrial environments

Display Specifications

• Size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch (default); Protection Glass w/o touch (optional); SAW Touch (optional)
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M colors
• Active Area: 376.32 x 301.06 mm

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

I/O and Audio

• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: 3.5 mm line-in (optional); 2 x speakers (optional)

Mechanical

• Dimensions: 482 x 399 x 65 mm
• Mounting: VESA mount / rack mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design

Accessories

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Power

• Power rating: 12V DC in (standard); 24V DC in (optional)

Control

• Front buttons: 5 keys — -, +, Power, Esc, Enter

Technical Specifications

• Model: R19L300-RKM2
• Brand: Winmate
• Display size & resolution: 19-inch (1280 x 1024)
• Brightness / Contrast: 300 nits / 2000:1
• Touch options: Resistive (default); SAW or Protection Glass (optional)
• Inputs: VGA (default); HDMI (optional); DVI (optional)
• USB for touch: 1 x USB
• Audio options: 3.5 mm line-in; 2 x speakers (optional)
• Operating temp/humidity: 0°C to 50°C; 10% to 90% RH non-condensing
• Dimensions: 482 x 399 x 65 mm; VESA / rack mountable
• Enclosure: Metal housing with aluminum bezel; fanless design
• Power: 12V DC (standard); 24V DC (optional)
• Certifications: CE, FCC
