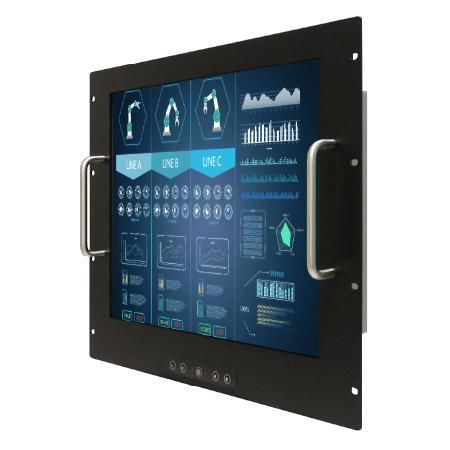

Resistive touch screen monitor R19L300-RKM1

with touchscreentouch screenindustrial

Overview
The R19L300-RKM1 is a 19.0-inch industrial rack-mount touchscreen monitor designed for server racks, control consoles and industrial automation systems. It features a metal housing with optional pull-out drawer, VESA and rack mounting, multiple video inputs and touchscreen operation for direct on-screen control. The product is intended for compact integration in racks, cabinets and vertical surfaces.

Key Features

• 19.0 inch display, 1280 x 1024 resolution
• VGA input (default); HDMI and DVI optional
• Rack-mountable monitor with VESA support
• Resistive touch screen (default); protection glass or SAW touch optional
• Fanless design; metal housing with aluminum bezel; pull-out drawer option
• 1 x USB for touch interface

Certifications

• CE
• FCC

Product Highlights

• Rack-focused design for quick installation in 19" server racks and cabinets
• Multiple signal interfaces to simplify integration with embedded boards and systems
• Touchscreen operation for on-site control and HMI tasks
• Compact footprint with optional pull-out drawer for space-saving or portable rack applications
• Accessories included: VGA cable, HDMI cable, 100~240V AC-to-DC adapter, power cord, manual, VESA screws (varies by product)

Technical specifications

• Model: R19L300-RKM1
• Size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (default); Protection glass without touch (optional); SAW Touch (optional)
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80 (typical)
• Display Color: 16.7M colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speaker (optional)
• Dimension: 482.6 x 399 x 61 mm
• Mounting: VESA mount / Rack mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
