LCD monitor R15L600-RKC3

resistive touch screenvideo surveillancefor HMI interface

Overview

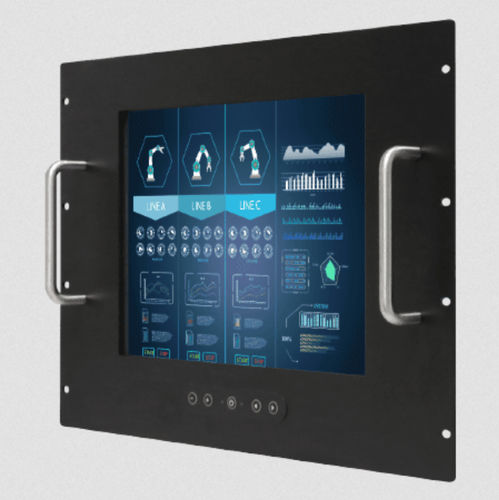

The R15L600-RKC3 is a 15.0 inches rack-mount display designed for control rooms, security monitoring, server racks and cabinet applications. It features a pull-out drawer rack-mount design, metal housing with front handles, fanless cooling and on-screen user controls. The unit supports VGA (default) with optional HDMI and DVI inputs, and offers optional touchscreen configurations (resistive default).

Key features

• 15.0 inches display, 1024 x 768 resolution
• VGA input (default); HDMI and DVI optional
• Pull-out drawer / rack-mount and VESA mount compatible
• Optional touchscreen: resistive (default); protection glass or SAW options
• Fanless design with metal enclosure and front handles

Certifications

• CE
• FCC

Technical specifications

• Display Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports - USB: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions: 482 x 310 x 51.8 mm
• Mounting: VESA Mount / Rack Mount (pull-out drawer compatible)
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100-240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by model)
• Optional accessory: Remote controller (varies by model)
• Power Rating: 12V DC in (default); 24V DC in (optional)
• Controls: 5 Keys: -, +, Power, Esc, Enter
