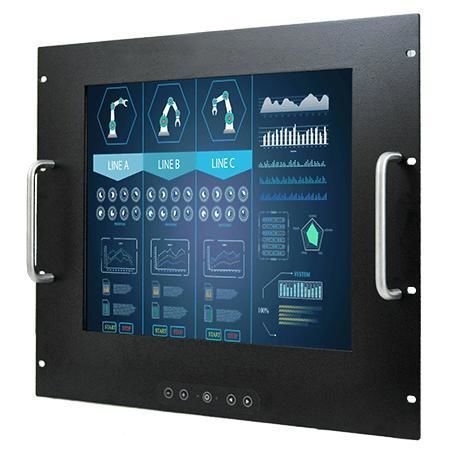

LCD monitor R17L500-RKM1

resistive touch screenindustrialfor displays

Overview
The R17L500-RKM1 is a 17-inch rack-mount industrial display designed for control rooms, server racks, security monitoring and other industrial installations. It features a metal enclosure with an aluminum bezel, tempered front glass, front OSD controls and multiple video inputs for integration with legacy and modern systems.

Key Features

• 17.0" display, native resolution 1280 x 1024
• Standard VGA input; HDMI, DVI and other video interfaces optional
• Rack-mount (slide drawer option) and VESA mount compatible
• Metal housing with aluminum bezel and tempered front glass
• Front OSD buttons and front-mounted power switch; fanless design

Certifications

• CE
• FCC

Applications

• Server room and IT infrastructure monitoring
• Control rooms and industrial automation HMI
• Security and CCTV monitoring centers
• Broadcast, transportation, laboratory and medical displays requiring rack installation

Options & Expandability

• Resistive touch screen (USB or serial) standard upgrade; SAW and other touch types optional
• Front protection bezel with IP65 / NEMA4 rating (optional)
• Optional video inputs: HDMI, BNC, DVI, 3G/HD/SD-SDI
• MCS multi-display control solution and multiple DC power input options (12V, 24V, others)

Notes on Design & Operation
Tempered front glass protects the LCD from scratches and dust. Front-located OSD keys permit adjustment of contrast, brightness, horizontal/vertical position, phase/clock and color balance. Pull-out rack design facilitates maintenance and space-efficient 24/7 operation.

Technical specifications

• Display size: 17.0 inches
• Touch / glass: Resistive touch (default); protection glass (no touch) and SAW optional
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 85 / 85 / 80 / 80
• Colors: 16.2M
• Active area: 337.920 x 270.336 mm
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB: 1 x USB (touch)
• Video: 1 x VGA (standard); HDMI, DVI optional; BNC/SDI options
• Audio: Audio line-in (3.5 mm) and 2 x speakers optional
• Dimensions: 482.6 x 399 x 65 mm
• Mounting: VESA / Rack mount (9U rackmount monitor for 17" wide rack)
• Enclosure: Metal housing with aluminum bezel; tempered front glass
• Cooling: Fanless design
• Accessories (typical): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws
• Power: 12V DC input standard; 24V DC optional
• Control keys: 5 keys (-, +, Power, Esc, Enter)
