LCD monitor R15L100-RKA1
resistive touch screenwith touchscreenindustrial

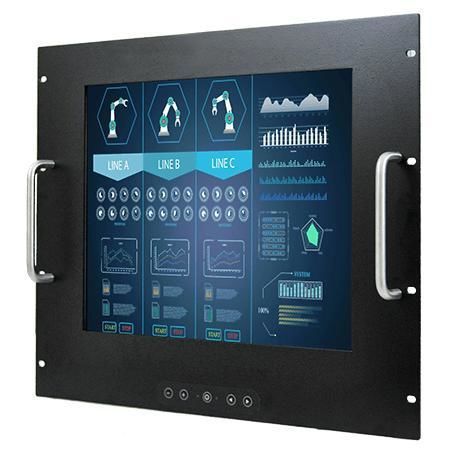

LCD monitor - R15L100-RKA1 - Winmate, Inc. - resistive touch screen / with touchscreen / industrial
LCD monitor - R15L100-RKA1 - Winmate, Inc. - resistive touch screen / with touchscreen / industrial
LCD monitor - R15L100-RKA1 - Winmate, Inc. - resistive touch screen / with touchscreen / industrial - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD, resistive touch screen, with touchscreen
Applications
industrial, for industrial machines, for displays, video surveillance
Display size
15"
Resolution
1024 x 768
Mounting
VESA mounting, rack-mount, rack drawer
Other characteristics
HDMI, USB, VGA, aluminum, DVI port, fanless
Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Overview
  • 15.0-inch rack-mount display R15L100-RKA1 designed for control rooms, server racks, security monitoring and industrial applications.


Key features
  • 15.0 inches, 1024 x 768 resolution
  • VGA and HDMI signal inputs (HDMI/DVI options depend on configuration)
  • Rack-mount design with pull-out drawer and VESA compatibility
  • Metal housing with aluminum bezel; fanless design
  • Touch options: resistive (default); SAW or protection glass (optional)


Applications
  • Server rooms, control rooms, security monitoring, industrial cabinets and embedded system integration


Display specifications
  • Resolution: 1024 x 768
  • Panel brightness: 350 nits
  • Contrast ratio: 800:1
  • View angles: 80/80/70/80
  • Display color: 16.2M; Active area: 304.128 x 228.096 mm


Connectivity & audio
  • USB: 1 x USB for touch screen
  • Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
  • Audio: line-in 3.5 mm (optional); 2 x speakers (optional)
  • Control buttons: 5 keys (-, +, Power, Esc, Enter)


Mechanical & environment
  • Dimensions: 482 x 310 x 58.8 mm
  • Mounting: VESA mount / rack mount
  • Enclosure: metal housing with aluminum bezel
  • Cooling: fanless design
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C


Power & control
  • Power input: 12V DC (standard); 24V DC optional
  • Included control: front panel buttons for local operation


Accessories
  • Included examples: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (may vary by configuration)
  • Optional: remote controller and other accessories depending on product variant


Certifications
  • CE
  • FCC


Model
  • Model: R15L100-RKA1
