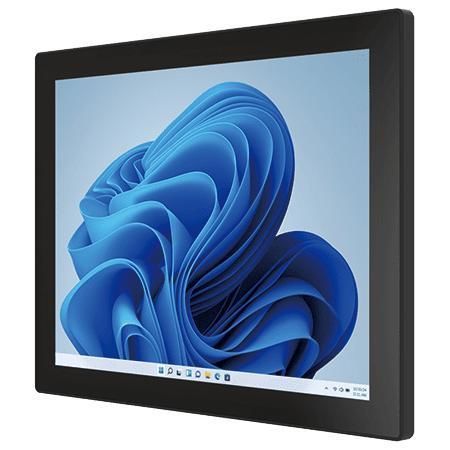

PCAP touchscreen panel PC R19IAD7T-GPM1

multitouch screentouch screen19"

Overview
Winmate R19IAD7T-GPM1 is a 19-inch Edge AI panel PC for industrial AIoT and automation deployments. It combines Intel vPro platform support with optional NVIDIA GPU and AI accelerator options, an integrated wide-range power supply and a P-CAP multi-touch front panel with glass cover.

Key features

• 19" 1280 x 1024 P-CAP multi-touch display (4-point)
• Supports Intel® 12th / 14th gen (Alder Lake S / Raptor Lake S) processors and Intel® vPro
• Optional single NVIDIA GPU (RTX™ 2000E Ada / RTX™ A1000 / RTX 4000E Ada / RTX 4000 SFF Ada)
• 2 x SO-DIMM up to 64 GB (32 GB per DIMM), DDR5 support
• 2 x Intel 2.5 Gigabit LAN, 4 x USB 3.2 Gen2x1
• Built-in 80 ~ 264 VAC power input with 3-pin AC plug for adapter-free deployment
• Front IP65 rating

Intel platform and security
Supports Intel vPro and Intel® Threat Detection Technology for platform-level management and hardware-assisted threat detection suitable for managed industrial installations.

P-CAP touchscreen
Projected capacitive multi-touch with a glass cover lens provides scratch protection and intuitive four-point touch operation for operator panels and HMI use.

NVIDIA GPU and AI acceleration
Optional professional NVIDIA GPUs and an optional Hailo 8™ AI accelerator module (up to 26 TOPS) support accelerated AI inference, professional visualization and GPU‑based compute tasks. Note: some AI accelerator options may affect WLAN availability.

Power and deployment
Integrated wide-range PSU accepts 80–264 VAC via a standard 3-pin AC plug to simplify global installations and reduce cabling complexity.

Connectivity
Dual 2.5 GbE ports and multiple USB 3.2 ports enable high-throughput data and image transfer for AIoT and factory automation applications. Video outputs support dual displays (DP1.4a, HDMI 2.0b optional).

Certifications

• CE
• FCC

Technical specifications

• Model: R19IAD7T-GPM1
• Display: 19.0 inches, 1280 x 1024, 250 nits, 1000:1, view angles 85/85/80/80, active area 376.32 x 301.06 mm
• Processor: Intel® Core™ i5-12500TE (default); optional i7-12700TE, i9-12900TE, i5-14500T, i7-14700T, i9-14900T
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; RAID 0/1 optional
• Ethernet: 2 x Intel® 2.5 Gbps
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro; Linux Ubuntu 24.04 (Wake on Touch not supported on Ubuntu)
• WLAN / BT: optional (M.2 2230 E-Key for Wi‑Fi module)
• AI Accelerator: Hailo 8™ module up to 26 TOPS (optional; may disable WLAN)
• GPU (optional): NVIDIA® RTX 4000E Ada 20 GB; RTX 4000 SFF Ada 20 GB; RTX 2000E Ada 16 GB; A1000 8 GB
• IO: 4 x USB 3.2 Gen2x1 (10 Gbps, Type-A); 1 x RS232/422/485 (default RS232); 2 x 2.5 GbE RJ45; 1 x DP1.4a (DP++), 1 x HDMI 2.0b (optional); Mic in; Line out; LED indicators
• Mechanical: 445 x 370 x 71.5 mm; cut out 425 x 340 mm; weight 6.5 kg; panel mount default, VESA optional; metal enclosure; fan cooling
• Environment: Operating humidity 10%–90% RH non‑condensing; operating temp 0°C to 55°C; storage temp -10°C to 60°C; front IP65
• Power: 80 ~ 264 VAC input (3‑pin AC plug); typical consumption up to 400 W
• Accessories: Power cord, VESA screws, mounting screws
