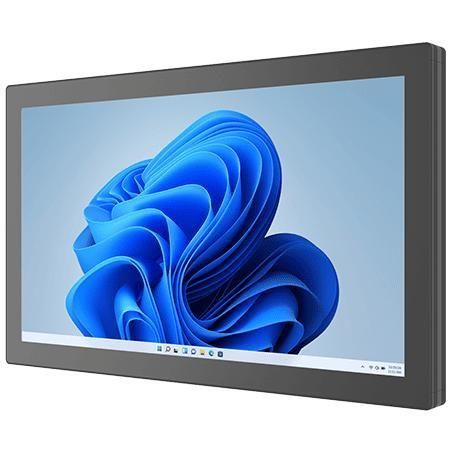

PCAP touchscreen panel PC W32IAD7T-GPA3

multi-touch screen32"Intel® Alder Lake-S

Overview
The Winmate W32IAD7T-GPA3 is a 32-inch Edge AI panel PC designed for industrial AIoT and edge computing deployments. It combines an Intel® vPro-enabled platform with optional professional NVIDIA GPUs and an optional Hailo 8 AI accelerator to support AI inference, visualization and high-performance edge workloads.

Key features

• 32-inch 1920 x 1080 P-CAP multi-touch display with glass cover lens
• Supports Intel® 12th/14th gen Alder Lake S / Raptor Lake S processors and Intel® vPro
• Optional single NVIDIA GPU: RTX™ 4000 SFF Ada / RTX™ 4000E Ada / RTX™ 2000E Ada / RTX™ A1000
• Optional Hailo 8 AI accelerator module (up to 26 TOPS)
• 2 x SO-DIMM up to 64 GB, 2 x Intel 2.5 Gigabit LAN, 4 x USB 3.2 Gen2
• Wide-range internal AC power (90–264 VAC) with 3-pin plug, front IP65

Highlights

• Intel® vPro platform with Threat Detection Technology for hardware-assisted security and manageability.
• P-CAP multi-touch with glass cover for durable, accurate operator interaction (4-point).
• GPU options accelerate AI inference, 3D visualization and real-time rendering for industrial workflows.
• Integrated wide-range power supply simplifies global deployment and eliminates external adapters.
• Dual 2.5 Giga LAN and multiple high-speed I/O for low-latency data transfer in automation and AIoT systems.

Certifications

• CE
• FCC

Technical specifications

• Display: 32.0 inches, 1920 x 1080, 400 nits, 4000:1 contrast, active area 698.4 x 392.85 mm
• Touch/Glass: Projected capacitive multi-touch; glass cover lens
• Processors: Default Intel® Core™ i5-12500TE; optional i7-12700TE, i9-12900TE; optional 14th-gen i5-14500T, i7-14700T, i9-14900T
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; RAID 0/1 optional
• Ethernet: 2 x Intel® 2.5 Giga LAN RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 24.04 (Wake on Touch not supported on Ubuntu)
• Wireless: Optional M.2 2230 E-Key Wi‑Fi (may be unavailable when Hailo 8 is used)
• AI Accelerator: Hailo 8™ (optional), up to 26 TOPS
• Graphics (optional): NVIDIA® RTX 4000E Ada 20 GB; RTX 4000 SFF Ada 20 GB; RTX 2000E Ada 16 GB; A1000 8 GB
• Mechanical: 777.6 x 477.6 x 73.3 mm; weight 14.8 kg; VESA mount; metal housing; fan cooling
• Environment: Operating 0°C to 55°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing; front IP65
• I/O: 4 x USB 3.2 Gen2 Type-A; 1 x RS232/422/485; 1 x DP1.4a (DP++); 1 x HDMI 2.0b (optional); Mic in; Line out; 1 x M.2 2230 E-Key slot
• Power: 1 x 3-pin AC plug (90 ~ 264 VAC); max consumption 400 W
• Indicators & controls: Power LED, Storage LED, AC power switch, power button, Clear CMOS, reset
• Accessories: Power cord, VESA screws
