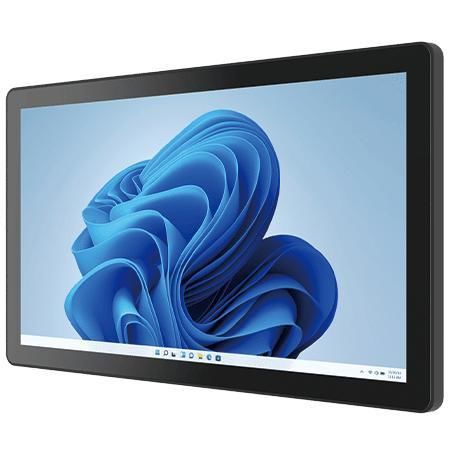

PCAP touchscreen panel PC W22IAD7T-GPA3

multitouch screen21.5"Intel® Core™ i5-12500TE

Product
21.5" Edge AI Panel PC with Intel® Alder Lake S / Raptor Lake S Processor

Key Features

• 21.5", 1920 x 1080 resolution with P-CAP touchscreen
• Supports Intel® 12th / 14th generation Alder Lake S / Raptor Lake S processors
• Supports single NVIDIA RTX™ 2000E Ada / RTX™ A1000 GPU card
• Supports Intel® vPro
• 2 x SO-DIMM RAM, up to 64GB (32GB per DIMM)
• 2 x Intel 2.5 Gigabit LAN, 4 x USB 3.2 Gen 2x1
• Supports two displays: 1 x HDMI 2.0, 1 x DP 1.4a
• 80 ~ 264 VAC power input with 3-pin AC plug

Overview
Cutting-edge Intel Platform
Winmate’s AI panel PC supports an advanced Intel vPro platform integrating AI-driven security features including Intel® Threat Detection Technology to enhance threat detection and system productivity.

Effortless Engagement with P-Cap Touch
Projected capacitive (P-Cap) touch with a glass cover lens supports 4-point multi-touch for intuitive finger control and scratch resistance, improving user interaction and overall experience.

NVIDIA GPU Empowered AI Analysis
Supports professional NVIDIA graphics cards to deliver enhanced AI performance, professional visualization features, and reliability for tasks such as 3D rendering and video processing with real-time ray tracing and AI-enhanced graphics.

High-Speed Connectivity by GigaLAN Port
Equipped with dual 2.5 Gigabit LAN ports for rapid data and image transfer, suitable for factory automation and AIoT applications to minimize latency and optimize response times.

Certifications

• CE
• FCC

Caractéristiques / Spécifications techniques

• Display: Size: 21.5 inches; Resolution: 1920 x 1080; Touch / Glass: Projected Capacitive Multi Touch Screen; Panel Brightness: 250 nits; Contrast Ratio: 3000:1; View Angles: 89 / 89 / 89 / 89; Active Area: 476.64 x 268.11 mm
• Processor (options): Intel® Core™ i5-12500TE (18M Cache, up to 4.30 GHz) (Default); Intel® Core™ i7-12700TE (25M, up to 4.60 GHz) (Optional); Intel® Core™ i9-12900TE (30M, up to 4.80 GHz) (Optional); Intel® Core™ i5-14500T (24M, up to 4.80 GHz) (Optional); Intel® Core™ i7-14700T (33M, up to 5.20 GHz) (Optional); Intel® Core™ i9-14900T (36M, up to 5.50 GHz) (Optional)
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD (Default); Optional: 256GB, 512GB, 1TB, 2TB, 4TB; RAID 0/1 support (Optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 24.04 (note: does not support Wake on Touch)
• Wireless: WLAN (Optional); Bluetooth (Optional)
• AI Accelerator (optional): Hailo 8™ AI accelerator module, up to 26 TOPS (when using this feature, WLAN will not be supported)
• Graphics Card (optional): NVIDIA® RTX 4000E Ada 20GB; NVIDIA® RTX 4000 SFF Ada 20GB; NVIDIA® RTX 2000E Ada 16GB; NVIDIA® A1000 8GB
• Mechanical: Dimension: 530.2 x 321.7 x 70.5 mm; Cut out: 473 x 280 mm; Weight: 7.0 kg; Mounting: Panel mount (Default), VESA mount (Optional); Enclosure: Metal Housing; Cooling System: Fan Design
• Environment: Operating Humidity: 10% to 90% RH, non-condensing; Operating Temperature: 0°C to 55°C; Storage Temperature: -10°C to 60°C; Front IP rating: IP65
• IO Ports: USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type-A); Serial: 1 x RS232/422/485 (default RS232); LAN: 2 x 2.5 Giga LAN RJ45; Video: 1 x DP1.4a DP++ (Max up to 4096x2160@60Hz default), 1 x HDMI 2.0b (optional, Max up to 4096x2160@60Hz); Audio: Mic in, Line out; Expansion: 1 x M.2 2230 E-Key slot (for Wi-Fi module); Indicator: 1 x LED for power, 1 x LED for storage; Power Input: 1 x 3-pin AC plug
• Control: Buttons: 1 x AC Power Switch, 1 x Power Button, 1 x Clear CMOS Button, 1 x Reset Button
• Accessories: Power Cord; VESA screws; Mounting screws
• Power: Power Rating: 80 ~ 264 VAC; Consumption: 400 W
