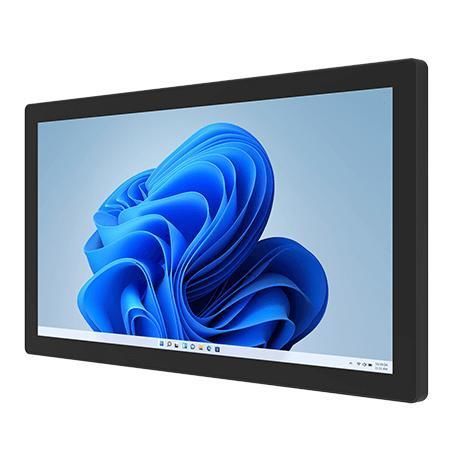

PCAP touchscreen panel PC W24IAD7T-GPA2

multitouch screentouch screen24"

Overview
The W24IAD7T-GPA2 is a 24-inch Edge AI panel PC engineered for industrial AIoT and automation deployments. It integrates an Intel® vPro-capable platform, optional NVIDIA® GPU acceleration, P-CAP multi-touch and a wide-range internal AC power input for global installations.

Key Features

• 24-inch, 1920 x 1080 resolution with projected capacitive (P-CAP) multi-touch
• Supports Intel® 12th / 14th generation Alder Lake S / Raptor Lake S processors
• Supports single NVIDIA® GPU cards (examples: RTX™ 2000E Ada, A1000)
• Intel® vPro support and TPM 2.0
• 2 x SO-DIMM (non-ECC), up to 64 GB (32 GB per DIMM)
• 2 x Intel® 2.5 Gigabit LAN, 4 x USB 3.2 Gen2x1
• Dual-display support: 1 x HDMI 2.0, 1 x DP 1.4a
• Built-in wide-range power input 80 ~ 264 VAC with 3-pin AC plug

Product Highlights
P-Cap Touch: Projected-capacitive 4-point multi-touch with a glass cover lens for scratch protection and intuitive finger operation.

NVIDIA GPU Empowered AI Analysis: Optional professional NVIDIA cards enable GPU-accelerated AI inference, 3D rendering and graphics workloads in a compact panel form factor.

Cutting-edge Intel Platform: Supports Intel® vPro and Intel Threat Detection Technology for enhanced manageability and security features.

Plug-and-Play Power: Built-in wide-range PSU accepts 80 ~ 264 VAC via a standard 3-pin AC plug for simplified global deployment.

High-Speed Connectivity: Dual 2.5 GbE ports and multiple high-speed USB ports provide low-latency communication for industrial automation and Edge AI data transfer.

Certifications

• CE
• FCC

Specifications

• Display - Size: 24.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen
• Display - Resolution: 1920 x 1080
• Display - Panel Brightness: 250 nits
• Display - Contrast Ratio: 3000:1
• Display - View Angles: 89, 89, 89, 89
• Display - Active Area: 527.04 x 296.46 mm
• System - Processor: Intel® Core™ i5-12500TE (default); optional i7-12700TE, i9-12900TE, i5-14500T, i7-14700T, i9-14900T
• System - Chipset: Intel® R680E
• System - Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• System - Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; RAID 0/1 optional
• System - Ethernet controller: 2 x Intel® 2.5 Gbps controllers
• System - Security: TPM 2.0
• System - Operating System: Optional Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 24.04 (note: Ubuntu does not support Wake on Touch)
• Wireless - WLAN/Bluetooth: Optional (M.2 2230 E-Key slot; note: Hailo module use disables WLAN)
• AI Accelerator: Optional Hailo 8™ AI module, up to 26 TOPS (when used WLAN not supported)
• Graphics: Optional NVIDIA® cards: RTX 4000E Ada 20 GB; RTX 4000 SFF Ada 20 GB; RTX 2000E Ada 16 GB; NVIDIA® A1000 8 GB
• Mechanical - Dimension: 588 x 358 x 75.5 mm
• Mechanical - Cut out: 513 x 300 mm
• Mechanical - Weight: 8.5 kg
• Mechanical - Mounting: Panel mount (default); VESA mount (optional)
• Mechanical - Enclosure: Metal housing
• Mechanical - Cooling System: Fan design
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 55°C
• Environment - Storage Temperature: -10°C to 60°C
• Environment - IP rating: Front IP65
• IO Ports - USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type A)
• IO Ports - Serial: 1 x RS232/422/485 (default RS232)
• IO Ports - LAN: 2 x 2.5 Giga LAN (RJ45)
• IO Ports - Video: 1 x DP1.4a (DP++), up to 4096x2160@60Hz; 1 x HDMI 2.0b (optional), up to 4096x2160@60Hz
• IO Ports - Audio: Mic in, Line out
• IO Ports - Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• IO Ports - Indicator: 1 x LED for power; 1 x LED for storage
• Power - Power Input: 1 x 3-pin AC plug (80 ~ 264 VAC)
• Power - Consumption: 400 W
• Control - Buttons: AC power switch; Power button; Clear CMOS button; Reset button
• Accessories: Power cord, VESA screws, mounting screws
