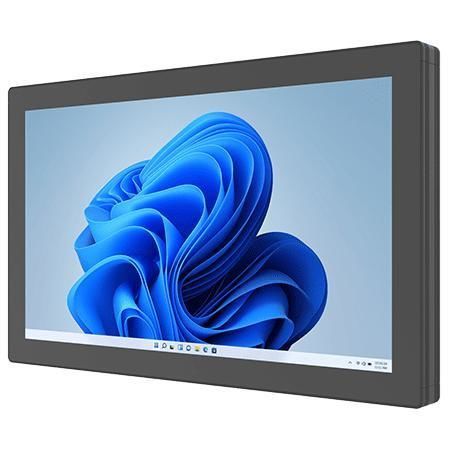

PCAP touchscreen panel PC W27IAD7T-GPA1

multitouch screentouch screen27"

Overview
Winmate W27IAD7T-GPA1 is a 27-inch Edge AI Panel PC built on the Intel vPro platform. It supports 12th/14th Gen Alder Lake-S / Raptor Lake-S processors, optional professional NVIDIA GPUs and an optional Hailo AI module. The system integrates a P-Cap touchscreen, wide-range 90–264 VAC built-in PSU and high-speed I/O for industrial AIoT and factory automation deployments.

Key Features

• 27-inch 1920 x 1080 display with projected capacitive (P-Cap) 4-point multi-touch
• Supports Intel Alder Lake-S / Raptor Lake-S processors and Intel vPro
• Optional single professional NVIDIA RTX-series GPU cards
• 2 x SO-DIMM up to 64GB, 4 x USB 3.2 Gen2x1 (Type-A), 2 x 2.5 Gbps LAN
• Dual display support: 1 x DP 1.4a (default), 1 x HDMI 2.0b (optional)
• Built-in wide-range PSU (90 ~ 264 VAC) with 3-pin AC plug

Certifications

• CE
• FCC

Product Highlights

• Intel vPro platform with Threat Detection Technology for improved security and manageability
• P-Cap glass cover lens with 4-point multi-touch and scratch resistance
• NVIDIA GPU support for AI acceleration, 3D rendering and professional visualization
• Integrated wide-range power supply for adapter-free global deployment and simplified installation
• Dual 2.5 Gbps LAN for reduced latency and faster data/image transfers

Technical specifications

• Display: 27.0-inch, 1920 x 1080, 300 nits, 3000:1 contrast, active area 597.6 x 336.15 mm
• Processor: Intel Core i5-12500TE (default); optional i7-12700TE, i9-12900TE, i5-14500T, i7-14700T, i9-14900T
• Chipset: Intel R680E
• Memory: 2 x non-ECC SO-DIMM, up to 64GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; RAID 0/1 optional
• Ethernet: 2 x Intel 2.5 Gbps controllers
• Security: TPM 2.0
• AI Accelerator: optional Hailo-8 module up to 26 TOPS (when used WLAN not supported)
• Graphics (optional): NVIDIA RTX 4000E Ada 20 GB; RTX 4000 SFF Ada 20 GB; RTX 2000E Ada 16 GB; A1000 8 GB
• Mechanical: 675.4 x 413.4 x 67.9 mm; Weight 10.2 kg; VESA mount; metal enclosure; fan cooling
• Environment: Operating 0°C to 55°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing; Front IP65
• IO: 4 x USB 3.2 Gen2x1, 1 x RS232/422/485, 2 x 2.5 Giga LAN RJ45, 1 x DP1.4a (DP++), 1 x HDMI 2.0b (optional), Mic in, Line out, 1 x M.2 2230 E-Key
• Power: 1 x 3-pin AC plug, 90 ~ 264 VAC; Consumption up to 400 W
• Controls & Accessories: AC power switch, power button, clear CMOS, reset; power cord and VESA screws included
