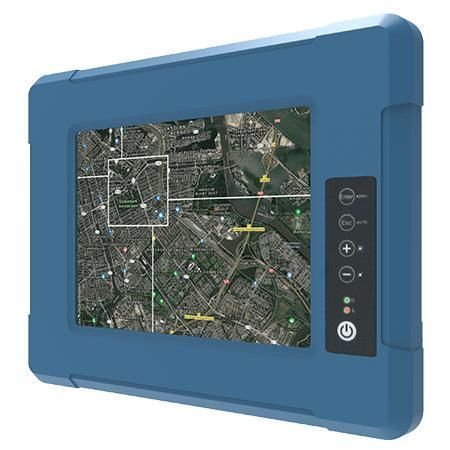

LCD monitor R08L100-MLU1

touch screen5-wire resistive touch screenfor industrial machines

Overview
The G-WIN Defence display R08L100-MLU1 is an 8.4 in 800 x 600 screen engineered for vehicle-mounted and industrial defence applications. Designed and tested to MIL-STD-810 and MIL-STD-461 environmental and EMC standards, it provides vibration-resistant operation and IP65-rated protection for front panel installations.

Key Features

• 8.4 in display, 800 x 600 resolution
• Meets MIL-STD-810G environmental and MIL-STD-461 series EMC options
• Fanless architecture with efficient heat dissipation
• VESA mount compatible for fixed or mobile installations
• AR protection glass standard; 5-wire resistive touch and EMI variants optional
• Front-panel IP65 dust and water protection (excluding I/O)
• On-screen display (OSD) controls and front physical keys
• 12 V DC defence-grade MIL-DTL-38999/1 power connector (9–36 V DC wide-range optional)

Certifications

• MIL-STD-461 series (default CE101/CE102/RE101/RE102 and CS118; additional tests optional)
• MIL-STD-810 series (vibration, shock, humidity, transit drop methods as specified)
• CE, FCC
• Optional NATO STANAG/TEMPEST compliance items available

Product Details
The R08L100-MLU1 is optimized for integration into armoured and defence vehicles where reliable display performance under shock, vibration and wide temperature ranges is required. The unit features a metal housing with aluminum bezel, vehicle-dock compatibility for navigation and tracking systems, and a lockable MIL-DTL-38999 type I power connector for secure power coupling. Front touchscreen options and physical OSD buttons enable fast local control in field operations.

Technical specifications

• Display Size: 8.4 inches
• Resolution: 800 x 600
• Panel Brightness: 600 nits
• Contrast Ratio: 600:1
• Viewing Angles: 75°/75°/60°/70°
• Display Color: 262K Colors
• Active Area: 170.4 x 127.8 mm
• Touch / Glass: AR Protection Glass (default); 5-wire resistive touch; EMI mesh/filter options
• Operating Humidity: 10% to 95% RH
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock: MIL-STD-810H Method 516.8 Proc I; Operating: 30g for 18 ms; NATO STANAG options
• Vibration: MIL-STD-810H Method 514.8 Proc I; Operating: 1.60/1.96/2.18 g rms XYZ / 5–500 Hz; NATO options
• TEMPEST: NSA NSTISSAM TEMPEST/1-92, NATO SDIP-27 (optional)
• IO Ports: Serial 1x RS232 (touch, optional); Video 1x VGA (default), HDMI optional
• Mechanical Dimensions: 277 x 219.5 x 59.7 mm
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories: User manual, touch driver CD, open wire cable; optional mounting bracket
• Power: 12 V DC (MIL-DTL-38999/1 connector) default; 9–36 V DC wide-range optional
• Controls: 5 keys ( -, +, Power, Esc, Enter )
