LCD monitor R19L100-MLA3

5-wire resistive touch screenwith touchscreenfor vehicles

Product

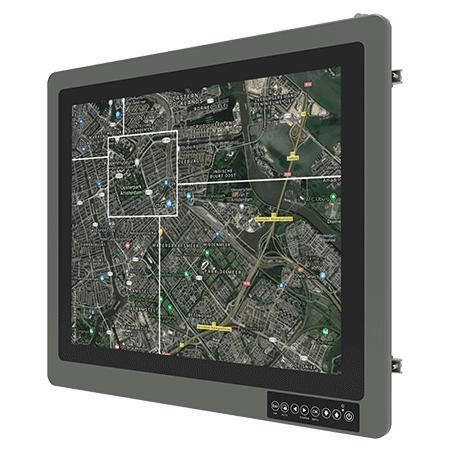

19" G-WIN Defence Display, model R19L100-MLA3 by Winmate

Key Features

• 19" LCD, native 1280 x 1024 resolution
• Compliant with MIL-STD-810G and MIL-STD-461 (configurable)
• Fanless metal housing with aluminum bezel
• On-screen display (OSD) controls and front physical buttons
• Wide operating temperature: -40°C to 70°C
• Power input 9–36 V DC with isolation; MIL-DTL-38999 type I lockable connector option
• VESA mount support (wall mount optional)
• Built-in intelligent heater and PIP (Picture-in-Picture) support

Certifications

• CE
• FCC
• MIL-STD-461G (select tests such as CE101, CE102, RE101, RE102, CS118 by default; additional items optional)
• MIL-STD-810 series (environmental tests)

Overview
Reliable defence-grade display designed for mission-critical vehicle and fixed installations. G-WIN displays from Winmate are built and verified to applicable MIL-STD environmental and EMC standards and undergo internal reliability tests for harsh operational conditions.

Defence vehicle focused design
Engineered for integration in armoured and defence vehicles: vibration and shock resistance, front IP protection (IP6x/IP65 depending on configuration), and options for vehicle docking, navigation and real-time communications between vehicle and control centre.

Built to survive extreme environments
Front IP-rated protection against water and dust and design tolerances for both cold and hot climates; optional TEMPEST/NAV and NVIS compatibility where specified.

Power and connector
Wide-range 9–36 V DC input with isolation and option for lockable MIL-DTL-38999 type I high-power connector to ensure secure power in vehicle systems.

User interface and controls
Touchscreen options and intuitive front OSD keys for power, brightness +/-, menu, day/night mode, LED indicator adjustment and ambient light sensor for quick in-field operation.

Accessories (included / available)

• User manual
• AC adapter 12V/84W
• Open wire cable
• Power converter cable 0.15 m
• VGA cable 1.8 m
• DVI cable 1.8 m
• COM cable 1.8 m

Additional product information / Technical specifications

• Model: R19L100-MLA3
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: AR protection glass (standard); 5-wire resistive touch (optional); 5-wire resistive with EMI mesh filter (optional); EMI glass (optional)
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Display colours: 16.7M
• Active area: 376.32 x 301.06 mm
• Operating humidity: 10% to 95% RH
• Operating temperature: -40°C to 70°C
• Storage temperature: -40°C to 70°C
• Shock & vibration: MIL-STD-810H shock and vibration methods; optional NATO STANAG variants
• Compliance: MIL-STD-461G details configurable (CE/RE/CS/RS items)
• Certifications: CE, FCC
• IO ports: Optional RS232 remote; Video: 1 x D-Sub 15 (VGA), 1 x DVI-D
• Mechanical dimensions: 474 x 410 x 111 mm
• Mounting: VESA mount (standard); wall mount optional
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power rating: 9–36 V DC input with isolation
• Control buttons: Power; + / - brightness; Menu (auto/manual); Day/Night mode; LED indicator adjustment; Ambient light sensor
