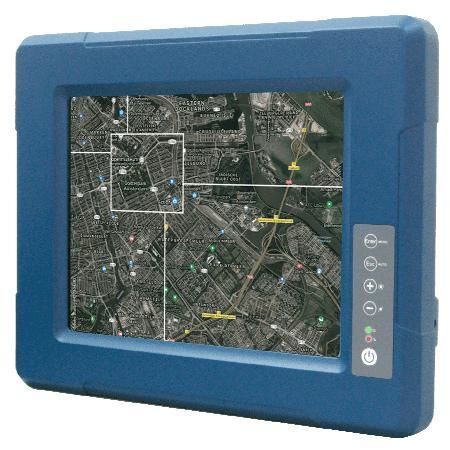

LCD monitor R10L100-MLT2

5-wire resistive touch screenindustrialmarine

Overview
The R10L100-MLT2 is a 10.4" G-WIN defence display engineered for vehicle-mounted and industrial defence applications. It is built to meet military environmental and EMC standards for reliable operation in harsh conditions. Key design elements include a rugged metal housing with aluminum bezel, full front IP65 protection (except I/O), fanless cooling and VESA mounting support.

Key Features

• 10.4" display, 1024 x 768 resolution, 500 nits brightness
• AR protection glass; optional 5‑wire resistive touch and EMI-filter variants
• Conforms to MIL‑STD‑810G and MIL‑STD‑461 (configurations may vary)
• On‑screen display (OSD) controls with 5 front keys
• Fanless design for efficient heat dissipation
• 12 V DC power via defence‑grade MIL‑DTL‑38999 connector (9–36 V DC wide range optional)
• Full IP65 dust and water protection at front (except I/O)
• VESA mounting supported

Certifications

• MIL‑STD‑461F / MIL‑STD‑461G (EMC/EMI tests; default CE/RE/CS items, additional items optional)
• MIL‑STD‑810G / MIL‑STD‑810H environmental standards (shock, vibration, humidity, transit/drop)
• FCC, CE

Defence & Environmental Durability
Designed for mission‑critical use in armored vehicles, naval and airborne platforms. Supports shock (MIL‑STD‑810H Method 516.8 Procedure I: operating 30g, 18 ms) and vibration (MIL‑STD‑810H Method 514.8 Procedure I: operating 1.60/1.96/2.18 g rms, 5–500 Hz) tests. Optional compliance and configurations include NATO STANAG environmental tests, TEMPEST or NVIS compatibility, EMI‑protected touch and optical bonding for sunlight readability. Internal reliability testing covers temperature/humidity chambers, EMI/EMC anechoic testing and photometric checks.

Accessories

• User manual
• Touch driver CD
• Open wire cable
• Optional: mounting bracket, front IP67 USB Type-A (optional)

Applications
Intended for vehicle navigation and communications, command & control (C4I), airborne and maritime consoles, maintenance stations and rugged workstations requiring rugged, sunlight‑readable and optionally NVIS‑compatible displays.

Technical specifications

• Model: R10L100-MLT2
• Display size: 10.4 inches
• Resolution: 1024 x 768
• Panel brightness: 500 nits
• Contrast ratio: 1000:1
• Display color: 16.2M colors
• Active area: 210.4 x 157.8 mm
• View angles: 88/88/88/88
• Touch / Glass options: AR protection glass (default); 5‑wire resistive touch (optional); 5‑wire resistive with EMI mesh filter (optional); EMI glass (optional)
• Operating humidity: 10% to 95% RH
• Operating temperature: -10°C to 60°C
• Storage temperature: -20°C to 70°C
• Shock: MIL‑STD‑810H Method 516.8 Procedure I — Operating: 30g for 18 ms (optional NATO STANAG 4370/AECTP402)
• Vibration: MIL‑STD‑810H Method 514.8 Procedure I — Operating: 1.60/1.96/2.18 g rms for XYZ, 5–500 Hz (optional NATO STANAG 4370/AECTP401)
• Compliance: MIL‑STD‑461G (CE101, CE102, RE101, RE102 default; additional items optional); MIL‑STD‑810H
• Certification: CE, FCC
• Serial port: 1x RS232 for touch screen (optional)
• Video: 1x VGA (default); HDMI (optional)
• USB / I/O: optional front IP67 Type A USB3.0; typical config references 2x USB 2.0, 1x GbE LAN (varies by configuration)
• Mechanical dimensions: 315.9 x 250.9 x 67 mm
• Mounting: VESA mount supported
• Enclosure: Metal housing with aluminum bezel; front IP65 protection (except I/O)
• Cooling: Fanless design
• Power rating: 12V DC via MIL‑DTL‑38999 connector (default); 9–36V wide range optional
• Control keys: 5 keys: -, +, Power, Esc, Enter
