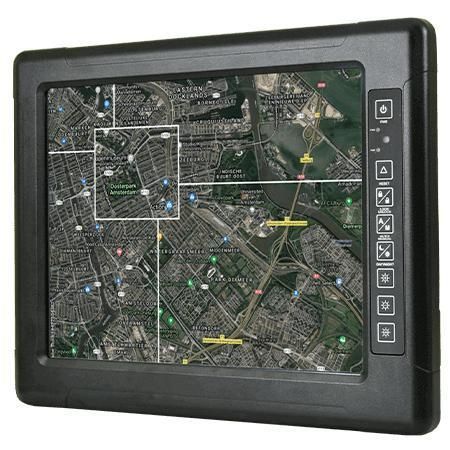

Resistive touch screen monitor R15L100-MLA3HB

5-wire resistive touch screenwith touchscreenfor vehicles

Overview
Reliable computing platform for defence vehicle applications. The R15L100-MLA3HB G-WIN Defence Display is engineered and tested to MIL-STD-810 and MIL-STD-461 standards for operation in harsh environments. It is optimized for vehicle integration with vibration resistance, IP65 front protection, wide operating temperature range and a fanless thermal design. Front-panel OSD controls and physical buttons enable quick local operation.

Key Features

• 15.0" display, 1024 x 768 resolution
• High brightness: 1000 nits
• Designed to MIL-STD-810G / MIL-STD-461 series
• Fanless design for reliable operation
• VESA mount compatible
• AR protection glass (default) and multiple touch options
• Lockable MIL-DTL-38999 Type I power connector (12 V DC default; 9–36 V DC optional)
• Front-panel OSD and physical control buttons

Certifications

• MIL-STD-461F / MIL-STD-461G (configurable sets)
• MIL-STD-810G / MIL-STD-810H environmental tests
• CE, FCC
• Optional: NATO STANAG 4370/AECTP and TEMPEST variants

Highlights

• Vehicle-focused design for armoured and defence vehicles with vibration and shock tolerance
• IP65-rated front panel for protection against water and dust
• Optional wide-range 9–36 V DC input via lockable MIL-DTL-38999 connector for vehicle power compatibility
• Multiple touch options: AR glass (default), 5-wire resistive, resistive with EMI mesh, EMI glass
• Defence-grade I/O options including lockable VGA, optional USB/RS232 for touch

Technical specifications

• Model: R15L100-MLA3HB
• Display size: 15.0 inches
• Resolution: 1024 x 768
• Panel brightness: 1000 nits
• Contrast ratio: 2500:1
• Viewing angles: 88/88/88/88
• Colors: 16.7M
• Active area: 304.1 x 228.1 mm
• Touch / glass: AR Protection Glass (default); optional 5-wire resistive; 5-wire resistive with EMI mesh; EMI glass
• Operating humidity: 10% to 95% RH
• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Shock: MIL-STD-810H Method 516.8 Procedure I (Operating: 30g for 18ms); optional NATO STANAG 4370/AECTP400
• Vibration: MIL-STD-810H Method 514.8 Procedure I (Operating: 1.60/1.96/2.18 g rms XYZ / 5–500Hz); optional NATO STANAG variants
• TEMPEST: NSA NSTISSAM TEMPEST/1-92 (optional); NATO SDIP-27 (optional)
• EMC compliance: MIL-STD-461G default sets (CE101, CE102, RE101, RE102, CS118; additional CS/RS optional)
• IO ports: 1 x VGA (defence grade); optional 1 x USB (touch); optional 1 x RS232 (touch)
• Mechanical dimensions: 398 x 308 x 58 mm
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: 12 V DC (MIL-DTL-38999/1 connector) default; optional 9–36 V DC wide range
• Control buttons (8-key): Power; Menu; Auto; Volume Up/Swap; Volume Down/PIP; Brightness Up; Brightness Down; LED Adjustment
• Accessories: User manual; touch driver CD; open wire cable; AC adapter; power cord
