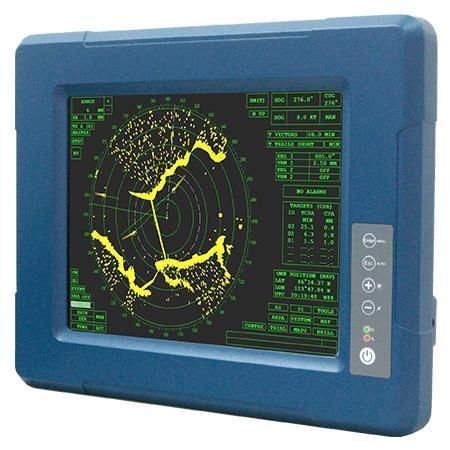

Resistive touch screen monitor R10L100-MLP1

5-wire resistive touch screentouchfor displays

Key features

• 10.4-inch 800 x 600 defence display with 600 nits brightness
• Compliant MIL-STD-810H environmental and MIL-STD-461G EMI options
• Fanless design with efficient passive heat dissipation
• Full IP65 enclosure (except I/O) and VESA mounting
• AR protection glass standard; 5-wire resistive and EMI-filter options
• Lockable MIL-DTL-38999 type I power connector (12 V DC default; 9–36 V DC optional)
• On-screen display plus physical OSD buttons for rapid control

Overview
The R10L100-MLP1 is a 10.4-inch G-WIN defence display engineered for verified operation in harsh and regulated defence environments. It is designed and tested to applicable MIL-STD environmental and EMI standards with in-house reliability validation to ensure continuous performance in vehicle and fixed installations.

Vehicle-focused design
Optimised for integration in armoured and defence vehicles: vibration- and shock-capable to MIL-STD-810H, available in fixed-mount or mobile vehicle configurations, and compatible with vehicle docking and mounting solutions for navigation, tracking and real-time comms.

Built for extreme environments
Robust metal enclosure with aluminum bezel and IP65 rating to resist dust and water ingress. Operating range covers -10°C to 60°C with storage to -20°C to 70°C, and extended shock/vibration options available to meet NATO test profiles.

Lockable defence-grade power connector
Equipped with MIL-DTL-38999 type I lockable connector for secure 12 V DC input (default). Optional wide-range 9–36 V DC input supports varied vehicle power systems and simplifies integration.

Touch and controls
Standard AR protection glass with optional 5-wire resistive and EMI-mesh filtered touch choices. Front physical OSD keys provide immediate access to brightness, menu and power controls for operator efficiency.

Certifications

• CE, FCC
• MIL-STD-810H environmental test options
• MIL-STD-461G EMI compliance options; additional NATO STANAG options

Technical specifications

• Display: Size 10.4 inches; Resolution 800 x 600; Brightness 600 nits; Contrast 400:1; Colors 262K; Active area 211.2 x 158.4 mm; View angles 70/70/70/60
• Touch/Glass: AR Protection Glass (default); 5-wire resistive touch (optional); 5-wire resistive with EMI mesh filter (optional); EMI glass (optional)
• Environment: Operating humidity 10%–95% RH; Operating temp -10°C to 60°C; Storage temp -20°C to 70°C
• Shock & Vibration: MIL-STD-810H shock and vibration profiles; NATO STANAG options available
• Compliance: MIL-STD-461G options (CE101, CE102, RE101, RE102, CS118 default variants available)
• IO: 1 x VGA (default), HDMI optional; 1 x RS232 for touch (optional)
• Mechanical: Dimensions 315.9 x 250.9 x 67 mm; VESA mount; Metal housing with aluminum bezel; Fanless
• Power: 12 V DC (MIL-DTL-38999/1 connector) default; 9–36 V DC wide-range optional
• Controls & Accessories: 5 physical keys (-, +, Power, Esc, Enter); Included: manual, touch driver CD, open wire cable; Optional mounting bracket
