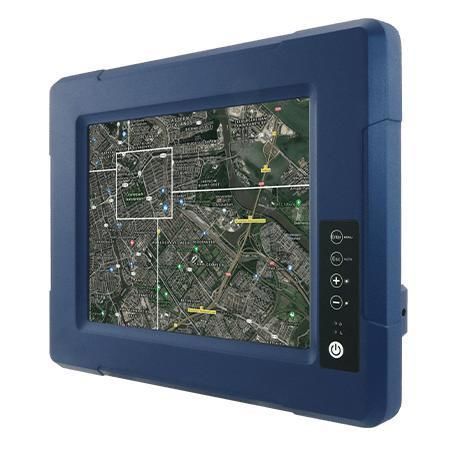

Resistive touch screen monitor R08L100-VMN1-NI

5-wire resistive touch screenwith touchscreenoutdoor

Overview
Winmate R08L100-VMN1-NI is an NVIS-compatible resistive touch display engineered for outdoor, vehicle and tactical field use. It supports Day and NVIS modes (MIL-STD-3009) and is optimized for glove operation and harsh environments; the product page lists -10°C to 60°C operating range while tests reference -20°C to 60°C.

Power & vehicle integration
9–36V DC isolated wide-range input supports mobile and vehicle installations. Optional ignition on/off control enables coordinated startup/shutdown in vehicle systems. Fanless anti-corrosion aluminum enclosure and front IP65 protection simplify integration in rugged and vehicular platforms.

Daylight & night vision compatibility
Provides high-brightness Day Mode and NVIS-compliant backlight for safe NVG operation per MIL-STD-3009, ensuring readability in direct sunlight and low-light tactical conditions.

Key features

• 8.4-inch panel, 800 x 600 resolution
• 5-wire / 4-wire resistive touch (touch optional)
• Panel brightness: 1000 / NVIS nits
• -10°C to 60°C operating temperature (page spec); tested to -20°C
• Front IP65 (I/O excluded); fanless design; anti-corrosion aluminum housing
• 9~36V DC isolated input; optional ignition on/off control
• VESA mount default; yoke mount optional

Certifications

• Front IP65
• CE
• FCC
• MIL-STD-3009 (NVIS)

Technical specifications

• Model: R08L100-VMN1-NI
• Brand: Winmate
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Size: 8.4 inches
• Resolution: 800 x 600
• Panel Brightness: 1000 / NVIS nits
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 170.4 x 127.8 mm
• Dimension: 277 x 219.5 x 59.6 mm
• Weight: 2.2 kg
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Aluminum Housing (Anti-corrosion)
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: -10°C to 60°C (tested -20°C to 60°C)
• Storage Temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I (Optional)
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65 (I/O ports excluded)
• Certification: CE, FCC, MIL-STD-3009 (NVIS compliance)
• USB Port: 1x USB type-A for touch control (Optional)
• Serial Port: 1x RS232 D-sub9 for touch control (Optional)
• Video: 1x VGA input (Default); 1x HDMI input (Optional)
• Indicator: 1 x LED for power; 1 x LED for status
• Buttons / Control: Power, Adjust up, Adjust down, ESC (Auto), Menu
• Accessory (included): Open wire cable with terminal block connector; External VGA cable; VESA screws
• Optional Accessory: Yoke mount stand; 100~240V AC to DC 50W adapter; External USB/COM cable; External HDMI cable
• Power Rating: 9~36V DC In Terminal Block (isolated)
