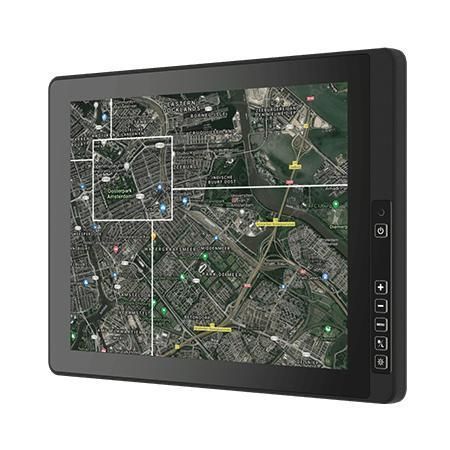

Projected capacitive touchscreen monitor R15L100-67N1-NI

5-wire resistive touch screenoutdoorfor vehicles

Overview
The R15L100-67N1-NI is a 15-inch NVIS-capable PCAP touch display designed for outdoor, vehicular and field-deployed systems. It is built for operation in harsh environments with wide temperature tolerance and full IP67 ingress protection. The display supports Day and NVIS modes and offers multiple touch and protection glass options to match operational needs.

Key Features

• 15.0-inch panel, 1024 x 768 resolution, 1000 NVIS nits panel brightness
• Projected-capacitive (PCAP) multi-touch with optical bonding (default)
• Optional true-flat 5-wire resistive touch with optical bonding
• Optional anti-reflective protection glass with optical bonding
• Full dust/waterproof enclosure with VESA mount — IP67
• Aluminum die-cast housing with anticorrosion pre-treatment
• Built-in ambient light sensor and on-screen display (OSD) controls
• Wide operating temperature: -20°C to 60°C
• Wide-range isolated power input 9–36V DC with M12 waterproof connector; optional ignition on/off control
• Supports Day Mode and NVIS Mode; MIL-STD-3009 compliance

Certifications

• IP67
• FCC
• CE

Technical specifications

• Model: R15L100-67N1-NI
• Touch / Glass: Projected Capacitive Multi Touch Screen bonding with panel (Default); True Flat Resistive Touch Screen bonding with panel (Optional); True Flat Protection Glass bonding with panel (Optional)
• Size: 15.0 inches
• Resolution: 1024 x 768
• Panel Brightness: 1000 / NVIS nits
• Contrast Ratio: 2500:1
• View Angles: 88 / 88 / 88 / 88
• Display Color: 16.7M colors
• Active Area: 304.1 x 228.1 mm
• Dimension: 379.4 x 278.4 x 58 mm
• Weight: 3.8 kg
• Mounting: VESA mount
• Enclosure: Aluminum housing; pre-finish Surtec 650, Type II, Class 3 coating; polyester powder coating
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP Rating: IP67
• Certification: CE, FCC
• USB Port: 1x M12 type connector for touchscreen via USB signal
• Serial Port: 1x M12 type connector for touchscreen via RS232 (Optional); 1x M12 type connector for RS232 remote control (Optional)
• Video: 1x M12 type connector for VGA input; 1x waterproof connector for HDMI input
• Indicator: 1x LED indicator for power; 1x LED indicator for lock/unlock status
• Power Input: 1x M12 waterproof connector for 9~36V DC (wide-range isolated input)
• Control / Buttons: Power key; "+" brightness increase; "-" brightness decrease; Menu key (auto/manual brightness adjust); Day / Night Mode button; LED indicator brightness adjustment; Ambient Light sensor
• Accessory (included): External open wire power cable with waterproof connector; External USB cable with waterproof connector for touch; External VGA cable with waterproof connector; External HDMI cable with waterproof connector; Waterproof caps; VESA screws
• Optional Accessory: 100~240V AC to DC 50W adapter with power cord (Optional); External COM cable with waterproof connector (Optional)
