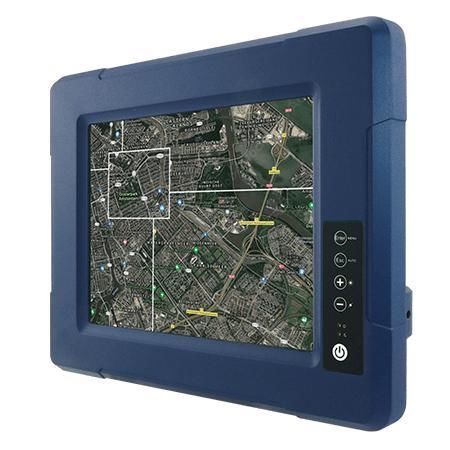

Winmate’s G-WIN Resistive Touch NVIS Display R10L100-VMN1-NI is a rugged 10.4-inch display engineered for outdoor, field and vehicle environments. It provides readable visuals in daylight and NVIS (night vision) conditions and features an anti-corrosion aluminum housing with a fanless design. The unit supports isolated 9–36V DC input with optional ignition on/off control for vehicle integration and meets NVIS requirements under MIL-STD-3009.

Key Features

• 10.4-inch panel, 1024 x 768 resolution
• 5-wire / 4-wire resistive touch (optional) or protection glass without touch
• Wide operating temperature range (spec: -10°C to 60°C; tested to -20°C in overview)
• Anti-corrosion aluminum housing, fanless design
• Front IP65 protection (excluding I/O ports)
• 9–36V DC isolated wide-range power input; optional ignition on/off control
• Support for Day Mode and NVIS Mode
• Compliance with MIL-STD-3009 for NVIS compatibility

Certifications

• Front IP65
• CE
• FCC
• MIL-STD-3009 (NVIS compatibility)

Product Highlights

• Designed for extreme environments: reliable operation for mobile military units, field installations and tactical outdoor systems.
• Flexible power options for vehicle use: isolated 9–36V DC input with optional ignition control for safe start/stop behavior.
• Daylight and NVIS compatibility: readable in bright sunlight and NVIS-safe backlighting for night-vision goggle use.
• MIL-STD NVIS compliance to meet night-vision operational requirements.

Caractéristiques / Spécifications Techniques

• Model: R10L100-VMN1-NI
• Brand: Winmate
• Display size: 10.4 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass w/o Touch (optional)
• Panel Brightness: 1000 / NVIS nits
• Contrast Ratio: 1000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.7M colors
• Active Area: 210.4 x 157.8 mm
• Dimension (W x H x D): 315 x 250 x 67 mm
• Weight: 2.9 kg
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Aluminum housing (anti-corrosion)
• Cooling system: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (spec); overview references tested down to -20°C
• Storage Temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I (optional)
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65 (except I/O ports)
• Certification: CE, FCC, MIL-STD-3009 (NVIS)
• Power Rating: 9V ~ 36V DC in terminal block (isolated)
• IO Ports: 1x USB Type-A for touch control (optional); 1x RS232 D-sub9 for touch control (optional); 1x VGA input (default); 1x HDMI input (optional)
• Indicator: 1 x LED for power; 1 x LED for status
• Buttons / Controls: Power, Adjust up, Adjust down, ESC (Auto), Menu
• Accessories: Open wire cable with terminal block connector; external VGA cable; VESA screws
• Optional accessories: Yoke mount stand; 100~240V AC to DC 50W adapter with power cord; external USB/COM cable for touchscreen control; external HDMI cable
