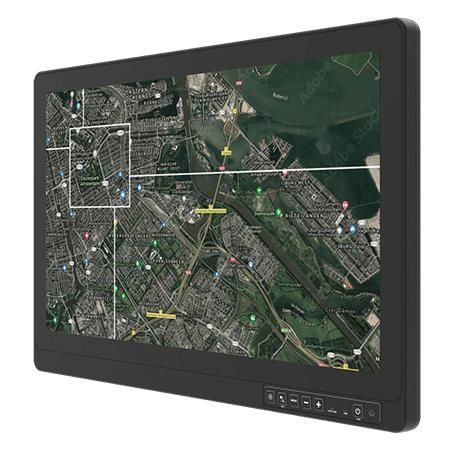

Multitouch screen monitor W22L100-67N1-NI

projected capacitive touchscreenPCAP touchscreencapacitive touch screen

Overview
Winmate W22L100-67N1-NI is a 21.5-inch NVIS-capable rugged display engineered for defence-grade, vehicle and outdoor/mobile industrial applications. It combines an IP67 dust/waterproof enclosure, wide operating temperature range and PCAP multi-touch with optical bonding to ensure readability and reliable operation in harsh environments.

Key Features

• 21.5" Full HD panel (1920 x 1080)
• Projected-capacitive (PCAP) multi-touch with optical bonding
• Optional anti-reflective and true-flat protection glass
• Full IP67 protection with VESA mounting
• Aluminum die-cast housing with corrosion-resistant finish
• Built-in ambient light sensor and OSD controls
• Wide operating temperature: -20°C to 60°C
• Isolated 9–36V DC input with optional ignition on/off control
• Supports Day Mode and NVIS Mode (MIL-STD-3009)

Certifications

• IP67
• CE
• FCC

Product Details / Description
Rugged display designed for field and vehicle integration: suitable for mobile military units, tactical outdoor systems and industrial vehicle installations. The fanless design and sealed enclosure provide reliable operation across temperature and humidity ranges.

Flexible power and vehicle integration: isolated wide-range 9–36V DC input and optional ignition delay allow safe integration in vehicular power systems and ensure smooth startup/shutdown behaviour.

Daylight readable and NVIS compatible: high-brightness panel and NVIS backlight modes deliver readable output in bright daylight and low-light tactical environments. PCAP touch enables precise control, including use with gloves when configured.

MIL-STD-3009 compliant for night-vision operations: certified NVIS operation ensures safe backlight behavior with NVG-equipped missions.

Technical specifications

• Model: W22L100-67N1-NI
• Display size: 21.5 inches
• Resolution: 1920 x 1080 (FHD)
• Touch / Glass: Projected Capacitive Multi Touch Screen Bonding With Panel (default); True Flat Protection Glass Bonding With Panel (optional)
• Panel Brightness: 1000 / NVIS nits
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M colors
• Active Area: 476.64 x 268.11 mm
• Dimensions: 529.6 x 342.8 x 58 mm
• Weight: 8.67 kg
• Mounting: VESA mount
• Enclosure: Aluminum housing; pre finish Surtec 650, Type II, Class 3; polyester powder coating
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP Rating: IP67
• Certifications: CE, FCC, IP67
• USB: 1x M12 connector for touchscreen via USB
• Serial: 1x M12 for touchscreen RS232 (optional); 1x M12 for RS232 remote control (optional)
• Video inputs: 1x M12 for VGA; 1x waterproof connector for HDMI
• Indicators: power LED; lock/unlock LED
• Power Input: 1x M12 waterproof connector for 9~36V DC (isolated)
• Buttons / Controls: Power, +, -, Menu, Day/Night mode, LED brightness control, ambient light sensor
• Accessories included: open-wire power cable with waterproof connector; USB, VGA, HDMI external cables with waterproof connectors; waterproof caps; VESA screws
• Optional accessories: 100~240V AC to DC 50W adapter; external COM cable with waterproof connector
