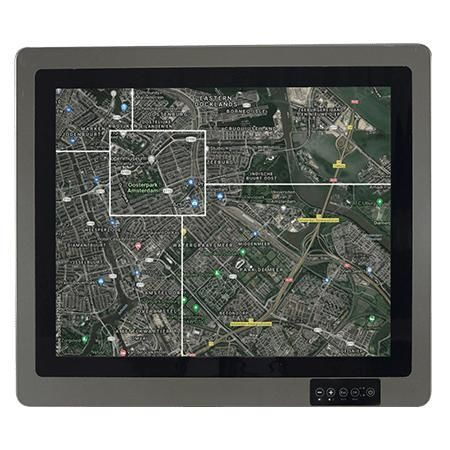

Touch screen monitor R19L100-67N1-NI

multitouch screenprojected capacitive touchscreenPCAP touchscreen

Overview
The Winmate R19L100-67N1-NI is a 19-inch NVIS-capable PCAP touch display engineered for outdoor, vehicular and field tactical applications. It combines a sealed aluminum IP67 enclosure, fanless thermal design and wide operating temperature for integration into mobile military units, vehicle systems and harsh-environment installations.

Key Features

• Fully sealed IP67 aluminum compact housing
• 19" 1280 x 1024 panel with projected capacitive (PCAP) multi-touch
• Wide operating temperature: -20°C to 60°C
• Fanless enclosure for efficient heat dissipation
• Front anti-impact design with software-lockable membrane keys
• Full IP67 male connectors with external female cables
• 9–36V DC isolated wide-range power input; optional ignition On/Off control for vehicle integration
• Day Mode and NVIS Mode support; compliant with MIL-STD-3009
• On-screen display (OSD) for brightness, contrast and visual adjustments

Certifications

• IP67
• CE
• FCC
• MIL-STD-3009 (NVIS compatibility)

Applications
Designed for vehicle-mounted systems, mobile military units, field command posts and outdoor tactical displays where NVG compatibility, sealed protection and flexible power options are required.

Technical specifications

• Model: R19L100-67N1-NI
• Brand: Winmate
• Touch / Glass: Projected Capacitive multi-touch, bonded to panel
• Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel Brightness: 1000 / NVIS nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80
• Colors: 16.7M
• Active Area: 376.32 x 301.06 mm
• Dimensions (WxHxD): 474 x 410 x 111 mm
• Cut out: 462 x 386 mm
• Weight: 9.8 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Aluminum housing, fully sealed
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Proc I
• Vibration: MIL-STD-810G Method 514.6 Proc I
• IP Rating: IP67
• IO - USB: 1 x M12 connector (touch via USB)
• IO - Serial: 1 x M12 connector for RS232 (optional)
• IO - Video: 1 x M12 for VGA (default); 1 x waterproof connector for HDMI (optional)
• Indicators: 1 x LED power; 1 x LED status
• Power Input: 1 x M12 waterproof connector for 9~36V DC (isolated)
• Controls: Power, Adjust Up, Adjust Down, ESC (Auto), OK (Menu)
• Standard Accessories: External open wire power cable (waterproof), external USB cable (waterproof), external VGA cable (waterproof), waterproof caps, mounting clips, VESA screws
• Optional Accessories: 100~240V AC to DC 50W adapter with power cord; external COM cable (waterproof); external HDMI cable (waterproof)
