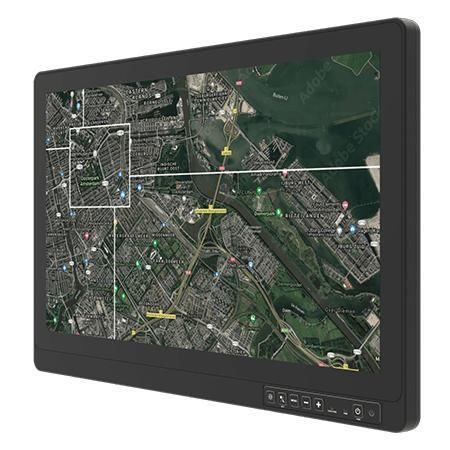

Multitouch screen monitor W22L100-67N1-NI

projected capacitive touchscreenPCAP touchscreenfor displays

Overview
Winmate W22L100-67N1-NI is a 21.5" NVIS-capable, full IP67 rugged touch display designed for defence and aerospace vehicle and field systems. It integrates a 1920 x 1080 PCAP multi-touch panel with optical bonding and supports Day and NVIS modes. The unit offers wide temperature operation and an isolated 9–36V DC input with optional ignition control for vehicle integration.

Key features

• 21.5" panel, 1920 x 1080 resolution
• Projected-capacitive (PCAP) multi-touch with optical bonding
• Optional anti-reflective or true-flat protection glass
• Full IP67 dust/waterproof design with VESA mounting
• Aluminum die-cast housing with anti-corrosion finish
• Built-in ambient light sensor and OSD controls
• Wide operating temperature: -20°C to 60°C
• Isolated DC input 9–36V with optional ignition on/off
• Supports Day and NVIS (MIL-STD-3009) modes

Certifications

• IP67
• FCC
• CE

Product highlights / Features described
Rugged fanless display engineered for harsh environments and mobile platforms. NVIS-compliant backlighting and certified MIL-STD-3009 compatibility enable night-vision operations with NVG systems. Optical bonding improves readability and touch accuracy in bright sunlight and challenging field conditions. Multiple waterproof M12/robust connectors support HDMI, VGA, USB touch and optional RS232 interfaces. User controls include physical keys for power, brightness, menu and Day/Night mode with LED indicators.

Technical specifications

• Model: W22L100-67N1-NI (21.5" G-WIN Full IP67 NVIS Display)
• Touch / Glass: PCAP multi-touch bonded to panel (default); true-flat protection glass bonding (optional)
• Size: 21.5 inches
• Resolution: 1920 x 1080
• Panel Brightness: 1000 / NVIS nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89/89/89/89
• Display Color: 16.7M
• Active Area: 476.64 x 268.11 mm
• Dimensions: 529.6 x 342.8 x 58 mm
• Weight: 8.67 kg
• Mounting: VESA mount
• Enclosure: Aluminum housing; Surtec 650 pre-finish, Type II, Class 3; polyester powder coating
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock / Vibration: MIL-STD-810G (516.6 / 514.6)
• IP Rating: IP67
• Certification: CE, FCC, MIL-STD-3009 (NVIS)
• IO Ports: 1x M12 USB for touchscreen; optional M12 RS232 for touchscreen and remote control
• Video Inputs: 1x M12 VGA; 1x waterproof HDMI connector
• Indicators: LED power and lock/unlock status
• Power Input: 1x M12 waterproof connector, 9–36V DC (isolated)
• Controls: Power, +/-, Menu, Day/Night mode, ambient light sensor
• Accessories (standard): External open-wire power cable (waterproof connector), external USB/VGA/HDMI cables (waterproof), waterproof caps, VESA screws
• Optional accessories: 100–240V AC to DC 50W adapter; external COM cable with waterproof connector
