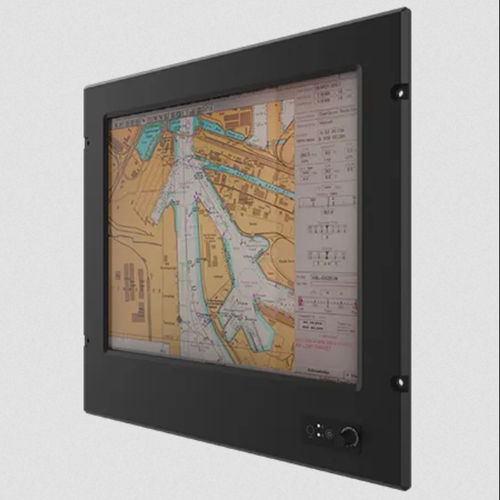

Resistive touch screen panel PC R19IT3S-MRA2

19"Intel® Core™ i7-1165G71280 x 1024

Overview
Winmate 19-inch Marine Panel PC R19IT3S-MRA2 powered by Intel® Core™ i7-1165G7, engineered and tested for maritime deployments. Meets key marine regulatory standards and delivers fanless, corrosion-resistant operation for mission-critical onboard systems.

Key Features

• Intel® Core™ i7-1165G7 processor marine panel PC
• Dimming knob with linear control from nearly 0% to 100%
• Wide DC input: 9–36 V DC
• Flush panel mount with IP66-rated aluminum front and powder-coated metal housing

Certifications

• Compliant with DNV-CG-0339, IEC 60945 (4th edition), IACS E10
• CE and FCC certified

Designed for Marine Operations
Validated for shipboard use with internal tests for shock, vibration and environmental stress. Hyper-dimming plus optional transflective film improves daytime and bright-ambient visibility. Front-panel OSD and dimming knob allow quick adjustments during navigation and bridge operations.

Ruggedness & Environmental Performance
Aluminum bezel and powder-coated metal housing reduce corrosion in marine environments. IP66 front protection shields against water and dust. Fanless thermal design minimizes maintenance and intake of salt-laden air; shock and vibration specs meet Class A maritime conditions.

Connectivity & Integration
Extensive I/O for integration with navigation, ECDIS and control systems: multiple LAN ports, USB 3.0, configurable serial interfaces (RS232/RS422/RS485), and optional HDMI output. Wide voltage range enables flexible power integration across vessel systems.

Accessories & Packaging

• Driver CD and user manual
• Mounting hardware: 4 x M6 black screw bolt with M6 nut
• AC adapter 12V/84W and power cord
• Optional upgrades: memory, storage, AR glass, additional serial/video interfaces

Technical specifications

• Model: R19IT3S-MRA2
• Brand: Winmate
• Display size: 19.0 inches
• Touch / Glass: Resistive touch screen (default); AR Glass optional
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Active area: 376.32 x 301.06 mm
• Processor: Intel Core i7-1165G7 2.8 GHz (up to 4.7 GHz)
• Memory: 4 GB (default); 8/16/32 GB optional
• Storage: 128 GB (default); 256/512 GB, 1/2/4 TB optional
• Ethernet controller: 2 x 2.5 Giga LAN (RJ45)
• OS: Windows 11 IoT Enterprise 64-bit (default); Windows 11 Pro, Windows 10 IoT Enterprise optional
• Operating humidity: 5% to 95%
• Operating temperature: -15 to 55 °C
• Shock: 15G, 11 ms
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front side)
• USB ports: 2 x USB 3.0
• Serial ports: 1 x RS232 (default); optional 4 x RS232 or 4 x isolation RS422/485
• LAN: 2 x RJ45 (10/100/1000 Mbps)
• Video: default; optional 1 x HDMI
• Dimensions: 483 x 444 x 77.5 mm
• Cut out: 429 x 396 mm
• Weight: 9.6 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel, powder coating
• Cooling: Fanless design
• Power input: Accepts 9–36 V DC
• Power consumption: 65 W (typical)
• Control buttons: 1 x Power, 1 x Reset, 1 x Dimming knob
