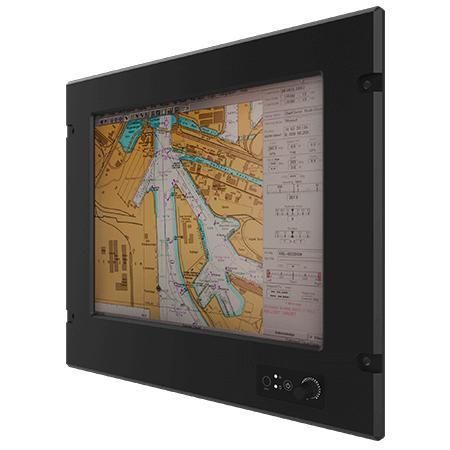

Resistive touch screen panel PC R15IT3S-MRM2

15"Intel® Core™ i7-1165G71024 x 768

Overview
Winmate R15IT3S-MRM2 is a 15.0-inch marine panel PC designed for maritime applications. It combines a fanless thermal design, IP66 front protection, wide 9–36 V DC input and maritime standard testing for reliable onboard operation.

Key Features

• Intel® Core™ i7-1165G7 processor for stable onboard computing
• Hyper-dimming knob for linear backlight control from nearly 0% to 100%
• Wide 9–36 V DC input for flexible power integration
• Flush panel (panel mount) with IP66 front and aluminum powder-coated bezel

Certifications

• CE
• FCC
• Designed/tested to DNVGL-CG-0339, IEC60945, IACS-E10

Product highlights
Winmate marine panel PCs provide front-panel OSD controls, optional transflective film to improve outdoor readability, fanless operation for low maintenance, robust mechanical design for shock and vibration resistance, and multiple configurable memory, storage and OS options for flexible vessel integration.

Peripheral & Control

• Front-panel OSD controls and dimming knob for fast adjustments
• Multiple I/O including USB 3.0, LAN and configurable serial ports
• Optional HDMI and display/storage upgrades for system requirements

Use Cases
Navigation consoles, bridge displays, engine-room monitoring, instrumentation panels and other mission-critical maritime systems requiring IP66 protection, shock/vibration tolerance and wide DC input range.

Technical specifications

• Model: R15IT3S-MRM2
• Display: 15.0 inches; Resolution 1024 x 768; Panel brightness 500 nits; Contrast 2000:1; Active area 304.1 x 228.1 mm
• Touch / Glass: Resistive touch (default); AR glass optional
• Processor: Intel® Core™ i7-1165G7 (2.8 GHz up to 4.7 GHz)
• Memory: 4 GB default; optional 8 / 16 / 32 GB
• Storage: 128 GB default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB
• Ethernet: 2 x 2.5 Giga LAN (spec also lists 2 x 10/100/1000 Mbps)
• USB: 2 x USB 3.0
• Serial: 1 x RS232 default; optional 4 x RS232 or 4 x isolated RS422/485
• Video: optional HDMI
• OS: Windows 11 IoT Enterprise (64-bit) default; optional Windows 11 Pro or Windows 10 IoT Enterprise
• Operating: Temperature -15 °C to 55 °C; Humidity 5%–95% non-condensing
• Shock & Vibration: Shock 15G (11 ms); Vibration 0.7 g @ DNVGL-CG-0339 (Class A)
• IP rating: IP66 (front)
• Dimensions / Cut-out / Weight: 412 x 345 x 71.7 mm / 360 x 302 mm / 6.2 kg
• Mounting: VESA mount or panel (flush) mount
• Enclosure: Metal housing with aluminum bezel, powder coating
• Cooling: Fanless design
• Power: 9–36 V DC input acceptable; Typical consumption 55 W
• Buttons: Power, Reset, Dimming knob; front-panel OSD
• Accessories included: Driver CD, User Manual, 4 x M6 screws & nuts, AC adapter 12 V / 84 W, Power cord
