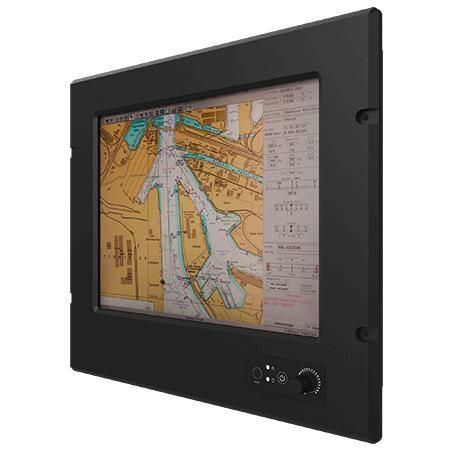

Resistive touch screen panel PC R12IT3S-MRM2

12.1"Intel® Core™ i7-1165G71024 x 768

Overview
Winmate R12IT3S-MRM2 is a 12.1" marine panel PC engineered for shipboard and offshore applications. The system pairs an Intel® Core™ i7-1165G7 processor with a fanless metal enclosure, IP66 front protection and wide input power for reliable operation in maritime environments.

Key Features

• Intel® Core™ i7-1165G7 processor
• Dimming knob for linear backlight control from near 0% to 100%
• 9–36V DC wide input power range for vessel integration
• Flush (panel) mount with IP66 front aluminum housing and powder coating

Certifications

• CE
• FCC
• Designed and tested to maritime standards: DNVGL-CG-0339, IEC60945, IACS-E10

Product Highlights

• Reliable computing validated for maritime deployment through compliance and in-house reliability tests.
• High visibility across daylight and night: hyper-dimming technology plus optional transflective film for outdoor readability.
• Front-panel OSD and physical dimming knob for rapid adjustment in operational conditions.
• Rugged mechanical design with enhanced shock and vibration resistance; fanless thermal design and metal housing for long-term mission-critical use at sea.
• Extensive I/O for system integration: USB, serial, dual LAN, optional HDMI and storage options.

Specifications

• Model: R12IT3S-MRM2
• Brand: Winmate
• Display: 12.1 inches, 1024 x 768, 500 nits, 1000:1 contrast, view angles 89/89/89/89, active area 245.76 x 184.32 mm
• Touch / Glass: Resistive Touch Screen (Default); AR Glass (Optional)
• Processor: Intel Core i7-1165G7 2.8 GHz (up to 4.7 GHz)
• Memory: 4GB (Default); optional 8GB/16GB/32GB
• Storage: 128GB (Default); optional 256GB/512GB/1TB/2TB/4TB
• Ethernet: 2 x 2.5 Giga LAN RJ45
• OS: Windows 11 IoT Enterprise (64-bit) default; Windows 11 Pro or Windows 10 IoT Enterprise optional (Note: Wake on touch supported only on Windows 11)
• Operating humidity: 5% to 95% | Temperature: -15 °C to 55 °C
• Shock: 15G, 11 ms | Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP Rating: IP66 (front side)
• Dimensions: 336 x 293.2 x 50 mm | Cut out: 307 x 253 mm | Weight: 4.5 kg
• Mounting: VESA mount / Panel mount | Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design | Power input: 9–36V DC | Power consumption: 55 W (typical)
• IO: 2 x USB 3.0; Serial: 1 x RS232 (default), optional 2 x RS232 or 2 x isolated RS422/485; LAN: 2 x RJ45 10/100/1000 Mbps; Video: default, optional 1 x HDMI
• Accessories: Driver CD & User Manual; 4 x M6 black screw bolts with M6 nut; 1 x AC adapter 12V/84W; 1 x power cord
• Controls: 1 x Power Button; 1 x Reset Button; 1 x Dimming Knob
