LCD panel PC W24IT3S-MRA1
widescreenresistive touch screentouch screen

LCD panel PC - W24IT3S-MRA1 - Winmate, Inc. - widescreen / resistive touch screen / touch screen

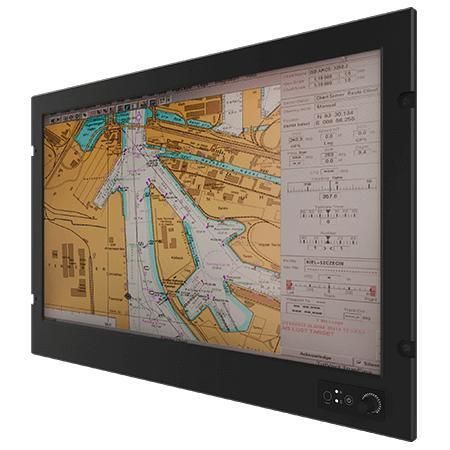

LCD panel PC - W24IT3S-MRA1 - Winmate, Inc. - widescreen / resistive touch screen / touch screen
LCD panel PC - W24IT3S-MRA1 - Winmate, Inc. - widescreen / resistive touch screen / touch screen - image - 2
LCD panel PC - W24IT3S-MRA1 - Winmate, Inc. - widescreen / resistive touch screen / touch screen - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
LCD, widescreen, resistive touch screen, touch screen
Display size
24"
Processor
Intel® Core™ i7-1165G7
Resolution
1920 x 1080
Operating system
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, aluminum frame, in metal housing
Mounting
VESA mounting
Applications
for marine applications
Protection level
IP66
Other characteristics
wide temperature range
Memory size

Min.: 4 GB

Max.: 32 GB

Description

Overview
  • Winmate W24IT3S-MRA1 is a 24-inch marine-grade panel PC powered by Intel® Core™ i7-1165G7, engineered for bridge and onboard control applications and tested to maritime standards DNVGL-CG-0339, IEC60945 and IACS-E10.


Key features
  • 24" Full HD panel PC with Intel® Core™ i7-1165G7 processor
  • Hyper-dimming knob for linear backlight control from nearly 0% to 100%
  • Wide DC input: 9–36V DC
  • Panel (flush) mount aluminum housing with powder coating and IP66 front
  • Fanless design for low heat and high reliability


Visibility & controls
  • 300 nits, 1920×1080 display with 5000:1 contrast and wide viewing angles; optional transflective/AR film for improved outdoor readability
  • Front-panel OSD and physical dimming knob for immediate brightness adjustment during bridge/watch operations
  • Resistive touch standard (operable with gloves/wet hands); AR glass optional


Durability & environment
  • Designed and validated for harsh maritime environments with shock (15G, 11 ms) and vibration (0.7 g @ DNV-CG-0339 Class A) resistance
  • Operating range: -15 to 55 °C, humidity 5%–95%
  • Front IP66 protects against water ingress and frequent cleaning


Connectivity & integration
  • Rich I/O: 2 x USB 3.0, 1 x RS232 (default) with optional 4 x RS232 or 4 x isolated RS422/485, 2 x 2.5G LAN (RJ45)
  • Optional video output (1 x HDMI) and expandable storage (M.2 NVMe) and memory (SO‑DIMM)
  • Mounting: panel (flush) mount and VESA options for easy console integration


Certifications
  • CE, FCC; designed/tested to DNVGL-CG-0339, IEC60945, IACS-E10


Technical specifications
  • Model: W24IT3S-MRA1
  • Brand: Winmate
  • Display: 24.0 inches, 1920 x 1080, 300 nits, 5000:1, viewing angles 89/89/89/89, active area 531.36 x 298.89 mm
  • Touch/Glass: Resistive (default); AR Glass optional; transflective film optional
  • CPU: Intel Core i7-1165G7 2.8 GHz (up to 4.7 GHz)
  • Memory: 1 x SO-DIMM DDR4 2400 MHz; 4 GB default; options 8/16/32 GB
  • Storage: 1 x M.2 M-Key 2280 NVMe SSD; 128 GB default; options up to 4 TB
  • Ethernet: 2 x 2.5 Giga LAN (RJ45)
  • OS: Windows 11 IoT Enterprise (64-bit) default; optional Windows 11 Pro / Windows 10 IoT Enterprise
  • Power input: 9–36V DC acceptable; typical power 70 W
  • I/O: 2 x USB 3.0; serial default 1 x RS232; LAN 2 x RJ45 10/100/1000 Mbps; optional 1 x HDMI
  • Mechanical: 593 x 356.7 x 62.7 mm; cut out 566 x 362 mm; weight 10.3 kg
  • Mounting: VESA mount / Panel mount
  • Enclosure: metal housing with aluminum bezel, powder coating
  • Cooling: fanless
  • Controls: 1 x Power, 1 x Reset, 1 x Dimming knob
  • Accessories: driver CD, user manual, 4 x M6 screws & nuts, AC adapter 12V/84W, power cord
