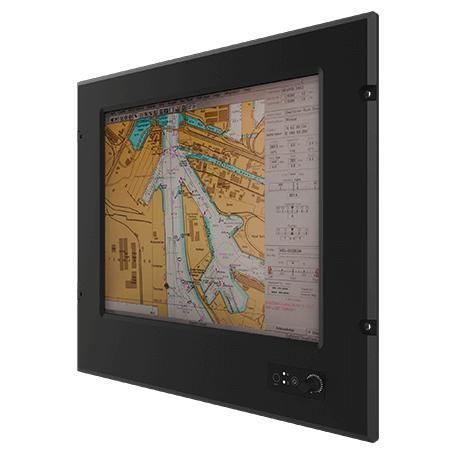

Resistive touch screen panel PC R17IT3S-MRM1

17"Intel® Core™ i5-1135G7Intel® Core™ i7-1165G7

Overview
The R17IT3S-MRM1 is a 17-inch marine panel PC equipped with an Intel® Core™ i7-1165G7, engineered for reliable operation in shipboard and offshore environments. Built and tested to marine standards (DNVGL-CG-0339, IEC60945, IACS-E10) with fanless cooling and IP66 front protection for bridge consoles and control cabinets.

Key Features

• Intel® Core™ i7-1165G7 processor
• Dimming knob for linear backlight control from nearly 0% to 100%
• Wide 9–36V DC input for flexible shipboard integration
• Panel (flush) mount with IP66 front aluminum bezel; fanless design

Certifications

• DNVGL-CG-0339 / IEC60945 / IACS-E10 compliance
• CE
• FCC

Highlights / Product Details

• Designed for mission-critical maritime deployments with internal reliability tests
• Hyper-dimming and optional transflective film improve readability in bright outdoor conditions
• Front-panel OSD and dimming knob for immediate brightness adjustment during navigation
• Rugged metal housing with enhanced shock and vibration resistance (15G shock, 0.7g vibration per DNV-CG-0339)
• Resistive touchscreen (default) for use with gloves or wet hands; AR glass available as option
• Multiple mounting options: VESA and panel (flush) mount for bridge consoles

Technical specifications

• Model: R17IT3S-MRM1
• Brand: Winmate
• Display: 17.0 inches, Resolution 1280 x 1024
• Touch / Glass: Resistive Touch (Default); AR Glass (Optional)
• Panel Brightness: 350 nits; Contrast Ratio: 1000:1; Viewing Angles: 85/85/80/80
• Processor: Intel Core i7-1165G7 (2.8GHz, up to 4.7GHz)
• Memory: 4GB (Default); options 8GB / 16GB / 32GB
• Storage: 128GB (Default); options 256GB, 512GB, 1TB, 2TB, 4TB
• Ethernet: 2 x 2.5 Giga LAN (RJ45)
• USB: 2 x USB 3.0
• Serial: 1 x RS232 (Default); optional 4 x RS232 or 4 x isolated RS422/485
• Video: Default; optional 1 x HDMI
• OS: Windows 11 IoT Enterprise (64-bit) Default; optional Windows 11 Pro / Windows 10 IoT Enterprise (Note: Wake on touch supported only on Windows 11)
• Operating humidity: 5%–95%; Temperature: -15 ~ 55 °C
• Shock: 15G, 11 ms; Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP Rating: IP66 (front)
• Dimensions (W x H x D): 337.5 x 272 x 77.2 mm; Cut out: 405 x 356 mm
• Weight: 8.4 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel, powder coating
• Cooling: Fanless design
• Power input: 9 ~ 36V DC; Power consumption: 65W (Typical)
• Controls: 1 x Power Button; 1 x Reset Button; 1 x Dimming Knob
• Accessories: Driver CD & User Manual; 4 x M6 black screw bolts with M6 nuts; 1 x AC Adapter 12V/84W; 1 x Power Cord
