Overview

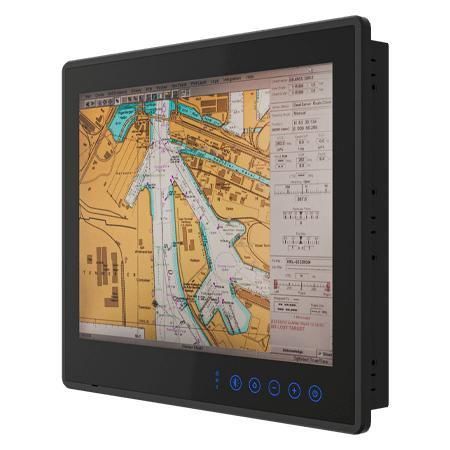

Winmate R15IAD3S-MRA3FP is a 15" ECDIS-certified marine panel PC engineered for bridge and marine navigation applications. It features a true-flat edge-to-edge narrow bezel, fanless cooling, front capacitive OSD keys for DAY/DUSK/NIGHT mode switching and optional color calibration for ECDIS compliance. Built to operate reliably in demanding maritime environments.

Key Features

• 15" 1024 x 768 PCAP touchscreen (Flat PCAP ECDIS Marine Panel PC)
• 13th Gen Intel® Core™ i5-1335U @ 3.4GHz (default)
• Edge-to-edge narrow bezel design and fanless cooling
• Six capacitive front OSD keys supporting ECDIS DAY / DUSK / NIGHT modes
• Meets marine standards: IEC60945 (4th), DNV-CG-0339, IACS E10
• Optional color calibration for ECDIS compliance

Certifications

• IACS E10
• IEC60945 (4th Edition)
• DNV-CG-0339
• FCC
• CE

Product Highlights
The optimized six-key front OSD enables quick selection of DAY/DUSK/NIGHT modes. True-flat front and fanless architecture minimize dust and moisture ingress and simplify cleaning. Projected capacitive multi-touch (PCAP) supports precise finger operation suitable for bridge navigation and integration with shipboard sensors.

Technical specifications

• Display – Size: 15.0 inches
• Display – Touch / Glass: Projected Capacitive Multi Touch Screen (AR Coating) (Default); AG film (Optional); AR Glass (Optional)
• Display – Resolution: 1024 x 768
• Display – Panel Brightness: 500 nits
• Display – Contrast Ratio: 2500:1
• Display – View Angles: 88,88,88,88
• Display – Active Area: 304.1 x 228.1 mm
• System – Processor: Intel® Core™ i5-1335U 3.4GHz (up to 4.60 GHz) (Default); Intel® Core™ i5-120U 3.8GHz (up to 5GHz) (Optional)
• System – Memory: 8GB (Default); 16GB / 32GB (Optional)
• System – Storage: 128GB (Default); 256GB / 512GB / 1TB / 2TB (Optional)
• System – Ethernet controller: 2 x Intel® Ethernet Controller
• System – Operating System: Windows 11 IoT Enterprise (64 bit) (Optional); Windows 11 Pro 64 bit (Optional); Windows 10 IoT Enterprise (64 bit) (Optional); Linux Ubuntu 22.04 (Optional, does not support Wake on Touch)
• System – Buzzer: 75 dB ~ 80 dB, 2300 Hz, 1 m
• Environment – Operating Humidity: 5% to 95%
• Environment – Operating Temperature: -15 ~ 55 °C
• Environment – Shock: 15G, 11 ms duration
• Environment – Vibration: 0.7g @ DNV-CG-0339 (Class A)
• Environment – IP rating: IP66 (Front Side)
• IO Ports – USB Port: 2 x USB 3.0
• IO Ports – Serial Port: 1 x RS232 (Default) / 422 / 485
• IO Ports – LAN: 2 x RJ45
• IO Ports – Video: 1 x HDMI (Optional)
• Front Control – Buttons: Power; Brightness +; Brightness -; Menu; Function Key (Default setting: ECDIS Mode)
• Indicators – Day Mode / Dusk Mode / Night Mode
• DIDO – 8 Channel Isolated Digital Input/Output (Optional)
• NMEA – 4 x NMEA 0183 Port (Optional)
• Mechanical – Dimension: 363 x 312 x 67.5 mm
• Mechanical – Cut out: 338 x 288 mm
• Mechanical – Weight: 5.8 kg
• Mechanical – Mounting: VESA mount / Panel mount
• Mechanical – Enclosure: Anodized Aluminum Bezel
• Mechanical – Cooling System: Fanless Design
• Accessory – Included: User Manual; 12V AC to DC Adapter (with 3 pin Terminal Block); Power Cord; M4 x 30 Black Screws Bolts; M4 x 15 Silver Screws Bolts
• Accessory – Optional: Four 5 Pin Terminal Block 3.81 (Phoenix Type) for NMEA port (Optional)
• Power – Power Rating: 24V DC-in with Isolation (certificate-approved); 9 ~ 36V DC input acceptable
• Power – Consumption: 55W (Typical)
