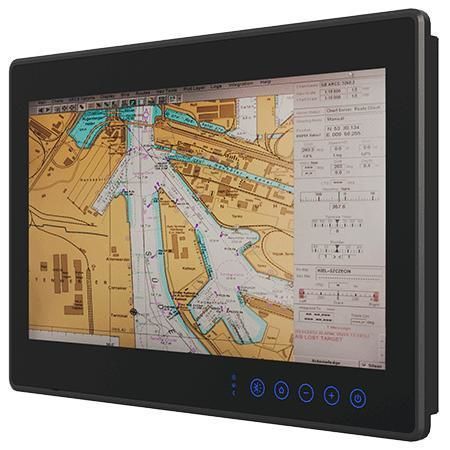

Panel PC with touch screen W15IAD3S-MRC3FP

PCAP touchscreenmultitouch screen15.6"

Overview
The W15IAD3S-MRC3FP is a 15.6-inch Full HD flat-front PCAP ECDIS marine panel PC designed for ship bridge and navigation systems. It integrates a projected-capacitive multi-touch display, fanless cooling and a narrow bezel for seamless installation in maritime consoles.

Key Features

• 15.6-inch 1920 x 1080 PCAP touchscreen, flat front for easy cleaning and integration
• Intel® Core™ i5-1335U (13th Gen) standard; CPU options available
• Edge-to-edge narrow bezel design, fanless cooling
• Capacitive touch keys for quick access and ECDIS Day/Dusk/Night mode switching
• Marine-grade certifications and optional color calibration for ECDIS compliance

Certified / Compliance

• IACS E10
• IEC60945 (4th Edition)
• DNV-CG-0339
• CE
• FCC

Product Highlights

• Flat front PCAP touchscreen with AR coating (AG film / AR glass optional)
• IP66 front protection and anodized aluminum bezel for harsh marine environments
• Isolated 24V DC-in (accepts 9–36V DC) for flexible shipboard power integration
• Front indicators and capacitive keys configured by default for ECDIS modes
• Fanless design reduces maintenance and ingress risk

Additional Info
Typical accessories: user manual, 12V AC-to-DC adapter with 3-pin terminal block, power cord, M4 x 30 black screws, M4 x 15 silver screws. Optional accessories include a four 5-pin terminal block (Phoenix) for NMEA ports.

Technical specifications

• Model: W15IAD3S-MRC3FP
• Display: 15.6-inch FHD (1920 x 1080), 450 nits, 800:1, active area 344.16 x 193.59 mm, viewing angles 89/89/89/89
• Touch / Glass: Projected Capacitive Multi-Touch (AR coating default); AG film / AR glass optional
• Processor: Intel® Core™ i5-1335U 3.4 GHz (up to 4.60 GHz) default; other CPU options available
• Memory: 8GB default; optional 16GB / 32GB
• Storage: 128GB default; optional 256GB / 512GB / 1TB / 2TB
• Ethernet: 2 x Intel® Ethernet Controller (2 x RJ45)
• USB: 2 x USB 3.0
• Serial: 1 x RS232 (default) / RS422 / RS485
• Video: 1 x HDMI (optional)
• Front Control: Power, Brightness +, Brightness -, Menu, Function Key (Default: ECDIS Mode)
• Indicators: Day Mode / Dusk Mode / Night Mode
• DIDO: 8-channel isolated digital I/O (optional)
• NMEA: Optional 4 x NMEA 0183 ports
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04 (Wake on Touch not supported)
• Environment: Operating temperature -15 ~ 55°C; humidity 5%–95%
• Shock & Vibration: Shock 15G (11 ms); Vibration 0.7g @ DNV-CG-0339 (Class A)
• Ingress Protection: IP66 (front)
• Mechanical: 400 x 276 x 67 mm; cut-out 378 x 254 mm; weight 6.8 kg; VESA / panel mount; anodized aluminum bezel
• Power: 24V DC-in isolated (certified), accepts 9–36V DC; typical consumption 60W
• Buzzer: 75–80 dB, 2300 Hz at 1 m
