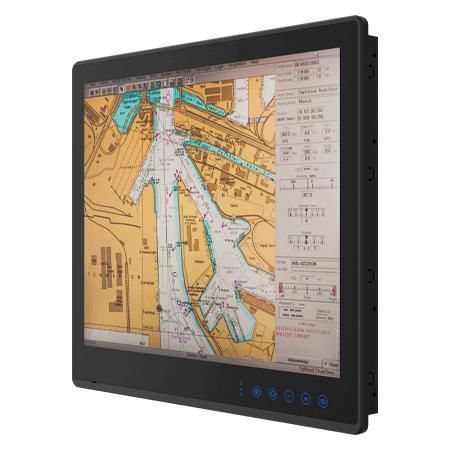

PCAP touchscreen panel PC R19IAD3S-MRM2FP

multitouch screentouch screen19"

Overview
Winmate R19IAD3S-MRM2FP is a 19" ECDIS marine panel PC engineered for navigation and control applications on vessels and offshore platforms. It features a true-flat, edge-to-edge PCAP multi-touch display, fanless cooling, optional IEC 61174 color calibration for ECDIS compliance, IP66 front protection and multiple marine certifications for continuous 24/7 operation.

Key Features

• 19" 1280 x 1024 resolution with Projected Capacitive (PCAP) multi-touch screen
• True-flat edge-to-edge narrow bezel design with fanless thermal solution
• Optional color calibration to meet IEC 61174 ECDIS requirements
• Capacitive touch keys for quick access to DAY, DUSK and NIGHT display modes
• Optional 4 x COM ports (NMEA 0183); RS422/485 switchable via software
• Marine-grade compliance: IEC60945 (4th edition), DNV-CG-0339, IACS E10
• Touch key lock / touchscreen lock support

Certifications

• CE
• FCC
• DNV-CG-0339
• IEC60945 (4th Edition)
• IACS E10

Product Highlights

• Certified marine computing solution designed and tested for harsh maritime environments.
• Optimized six-key OSD on the front panel for fast mode switching and display control.
• Optional precision color calibration to IEC 61174 for accurate nautical chart rendering.
• Sleek, rugged true-flat design with anodized aluminum bezel for corrosion resistance.
• Comprehensive I/O: Gigabit LAN, USB 2.0/3.0, optional HDMI, optional isolated DIDO and optional NMEA-compliant serial ports for integration with ECDIS, AIS and other onboard systems.

Additional Notes
Designed for bridge consoles and control cabinets, the R19IAD3S-MRM2FP balances navigation-grade display performance with rugged mechanical, environmental and I/O capabilities required for shipboard and offshore installations.

Technical specifications

• Model: R19IAD3S-MRM2FP
• Brand: Winmate
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Projected Capacitive Multi Touch Screen (AR Coating) default; AG film / AR Glass optional
• Panel Brightness: 350 nits
• Contrast Ratio: 2000:1
• View Angles: 89/89/89/89
• Active Area: 376.32 x 301.06 mm
• Processor: Intel® Core™ i5-1335U 3.4 GHz (up to 4.60 GHz) default; Intel® Core™ i5-120U optional
• Memory: 8GB default; 16GB / 32GB optional
• Storage: 128GB default; 256GB / 512GB / 1TB / 2TB optional
• Ethernet controller: 2 x Intel® Ethernet Controller (RJ45)
• Operating Systems: Windows 11 IoT Enterprise (64-bit) / Windows 11 Pro / Windows 10 IoT Enterprise / Linux Ubuntu 22.04 (optional)
• Buzzer: 75–80 dB @ 2300 Hz (1 m)
• Operating Humidity: 5% to 95%
• Operating Temperature: -15 ~ 55 °C
• Shock: 15G, 11 ms
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front side)
• USB: 2 x USB 3.0 default; 1 x USB 2.0 optional
• Serial / NMEA: 1 x RS232 default / RS422/485 switchable; optional extra RS232; optional 4 x NMEA 0183 ports (software switchable)
• LAN: 2 x RJ45 (Gigabit)
• Video: 1 x HDMI (optional)
• Front Control keys: Power, Brightness +, Brightness -, Menu, Function Key (default: ECDIS Mode)
• Indicators: Day Mode, Dusk Mode, Night Mode
• DIDO: 8-channel Isolated Digital Input/Output (optional)
• Mechanical dimensions: 429 x 382 x 72.8 mm
• Cut-out: 408 x 359 mm
• Weight: 7.8 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Anodized aluminum bezel
• Cooling System: Fanless design
• Power Rating: 24V DC-in with isolation (certificate approved); accepts 9 ~ 36V DC input
• Power Consumption: 65W (Typical)
• Accessories included: User Manual, 12V AC to DC Adapter (with 3-pin terminal block), Power Cord, M4 x 30 Black screws, M4 x 15 Silver screws
• Optional accessory: Four 5-pin terminal block 3.81 (Phoenix type) for NMEA port
