PCAP touchscreen panel PC W24IAD3S-MRA2FP

multitouch screentouch screen24"

Overview

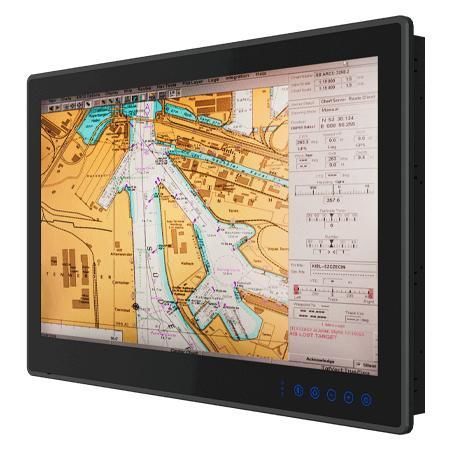

W24IAD3S-MRA2FP is a 24-inch ECDIS marine panel PC engineered for bridge and navigation systems. It features a flat edge-to-edge projected-capacitive (PCAP) touchscreen, fanless cooling and marine-grade construction with color calibration options for ECDIS compliance. The unit is certified to common maritime standards for operation in demanding sea environments.

Highlights

• 23.8-inch (24-inch class) 1920×1080 Full HD display with projected capacitive multi-touch (PCAP)
• True-flat edge-to-edge bezel and fanless thermal design
• Optional color calibration for IEC 61174 / ECDIS compliance
• Capacitive front touch keys for quick access and DAY/DUSK/NIGHT modes
• Optional 4 x COM ports supporting NMEA 0183 (RS232/422/485 switchable)
• Front IP66 protection and anodized aluminum bezel for marine use

Certifications

• IACS E10
• IEC60945 (4th Edition)
• DNV-CG-0339
• CE
• FCC

Design and Operation
The panel PC offers a seamless front surface for easier cleaning and corrosion resistance. An optimized six-key OSD enables fast switching between display modes to reduce operator fatigue during extended watch periods. Fanless cooling and robust mechanical design ensure reliable operation under vibration and shock typical of maritime environments.

Connectivity and I/O

• 2 x RJ45 Ethernet (Intel controllers)
• 2 x USB 3.0 (default), optional 1 x USB 2.0
• Serial: 1 x RS232 (default) switchable to RS422/485; optional additional RS232
• Optional HDMI output, optional isolated 8-channel DIDO, optional 4 x NMEA 0183 ports
• Expansion: removable 2.5" SSD/HDD slot (optional)

Use cases

• ECDIS/navigation workstations on ship bridges
• Bridge consoles, integrated navigation systems and marine monitoring stations
• Any marine application requiring certified hardware, wide temperature range and vibration resistance

Technical specifications

• Display: Projected capacitive multi-touch (AR coating default); AG film or AR glass optional
• Size: 23.8 inches
• Resolution: 1920 x 1080 (Full HD)
• Brightness: 250 nits
• Contrast ratio: 3000:1
• Active area: 527.04 x 296.46 mm
• Processor: Intel® Core™ i5-1335U (3.4 GHz, up to 4.60 GHz) default; optional Intel® Core™ i5-120U
• Memory: 8 GB default; optional 16 GB / 32 GB
• Storage: 128 GB default; optional 256 GB / 512 GB / 1 TB / 2 TB
• Operating systems: Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Ubuntu 22.04 (Ubuntu: no Wake on Touch)
• IP rating: IP66 front side
• Operating temperature: -15 °C to 55 °C
• Operating humidity: 5% to 95%
• Shock: 15G, 11 ms
• Vibration: 0.7 g per DNV-CG-0339 (Class A)
• Dimensions: 595 x 385 x 73.8 mm
• Cut-out: 570 x 360 mm
• Weight: 10.3 kg
• Mounting: VESA mount and panel mount
• Power: 24 V DC-in with isolation (certified), accepts 9–36 V DC
• Power consumption: Typical 65 W
• Included accessories: User manual, 12 V AC to DC adapter (with 3-pin terminal block), power cord, M4 x 30 and M4 x 15 screws
