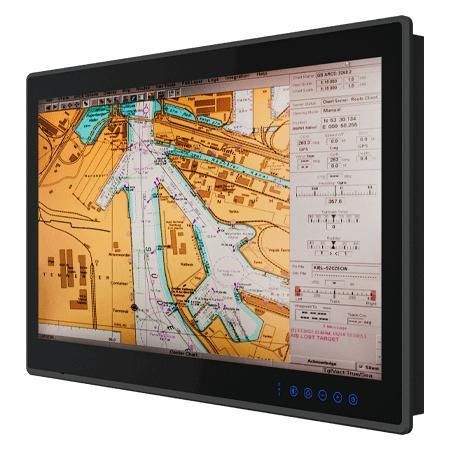

PCAP touchscreen panel PC W27IAD3S-MRA1FP

multitouch screen27"Intel® Core™ i5-1335U

Overview
W27IAD3S-MRA1FP is a 27-inch flat PCAP ECDIS marine panel PC equipped with an Intel® Core™ i5-1335U CPU. The true-flat edge-to-edge display, fanless cooling and color calibration options meet marine display requirements for ECDIS applications and integration on bridge consoles.

Key Features

• 27" 1920 x 1080 Full HD with projected capacitive multi-touch
• True-flat edge-to-edge narrow bezel design, fanless thermal design
• Color calibration for ECDIS (IEC 61174) — optional
• Capacitive touch keys (6-key OSD) with touch key lock function
• Supports ECDIS DAY, DUSK and NIGHT display modes
• Optional up to 4 x COM ports (NMEA 0183), RS232/422/485 switchable
• Meets marine standards: IEC60945 (4th), DNV-CG-0339, IACS E10; IP66 front

Certifications

• IACS E10
• IEC60945 (4th Edition)
• DNV-CG-0339
• FCC
• CE

Design & Marine Usability
Designed for bridge and control-station installation with an anodized aluminum bezel and true-flat front for easy cleaning and reduced contamination. Six-key OSD enables fast switching between Day/Dusk/Night modes. Precise color calibration follows ECDIS requirements to ensure accurate color rendering for navigation charts.

Connectivity & Expandability

• 2 x RJ45 Ethernet, 2 x USB 3.0 (1 x USB 2.0 optional), optional HDMI
• Serial ports: RS232 default, RS422/485 switchable; optional additional RS232
• Optional 4 x NMEA 0183 ports and optional 8-channel isolated digital I/O (DIDO)
• 1 x 2.5" removable SSD/HDD expansion (optional higher capacity variants)

Operation & Environmental Resilience
Operating range -15°C to 55°C and 5%–95% humidity. Shock rating 15G (11 ms) and vibration 0.7 g per DNV-CG-0339 (Class A). IP66-rated front panel and fanless design support long-term operation in maritime environments.

Technical Specifications

• Model: W27IAD3S-MRA1FP
• Display Size: 27.0 inches; Resolution: 1920 x 1080; Brightness: 300 nits; Contrast: 3000:1
• Touch / Glass: Projected Capacitive Multi Touch (AR coating default; AG film / AR glass optional)
• Processor: Intel® Core™ i5-1335U (default); optional Intel® Core™ i5-120U
• Memory: 8 GB default (16/32 GB optional)
• Storage: 128 GB default (options up to 2 TB)
• OS Options: Windows 11 IoT/Windows 11 Pro/Windows 10 IoT/Linux Ubuntu 22.04 (optional)
• Dimensions (W x H x D): 665 x 432.4 x 85.5 mm; Cut-out: 632 x 394 mm; Weight: 12.8 kg
• Mounting: VESA mount / Panel mount; Enclosure: Anodized aluminum bezel
• Power: 24V DC-in with isolation (certificate approved); accepts 9–36V DC; Typical power: 75 W
• Front Controls: Power, Brightness +/-, Menu, Function Key (default ECDIS Mode)
