Box PC ITMH100-EX

VESA mountingIntel® Core™ i5-1135G7Intel® Core™ i5-1135G7

Overview

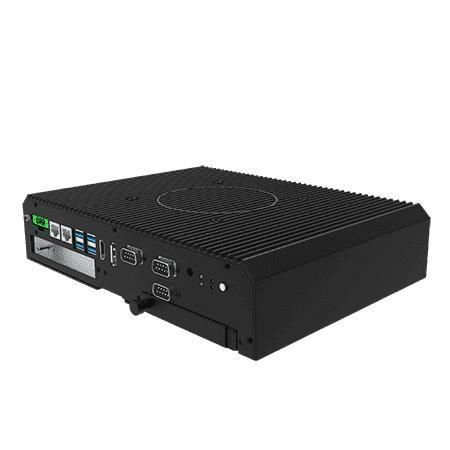

Winmate ITMH100-EX is an industrial fanless Box PC based on Intel® Tiger Lake UP3 (Core™ i5-1135G7). It is engineered for use in hazardous locations (Class 1 Division 2 / ATEX Zone 2 / IECEx) and for applications in oil & gas, chemical processing, industrial automation and mobile on-board systems.

Key highlights

• Intel® Tiger Lake UP3 Core™ i5-1135G7
• Multi video output (DP1.4 default; HDMI 2.0 optional) with auto display detection
• Quick tool-free removable 2.5" HDD/SSD bay plus M.2 2280 NVMe slot
• Wide DC input range: 9–29V with protection (OVP/OCP/reverse)
• Modular front display option to convert to a Panel PC; multiple internal expansion slots
• Expansion: PCIe x4 slot and additional mPCIe / M.2 slots
• Certified for hazardous locations: C1D2, ATEX Zone 2, IECEx

Product Details / Highlights
Tool-free removable storage: the ITMH100-EX provides a removable 2.5" bay and an M.2 2280 NVMe slot for easy drive replacement and flexible storage configurations (drive replacement must follow hazardous-area safety procedures).

Video & connectivity: supports combinations of DisplayPort, optional HDMI and USB 3.2 Gen1 Type-A ports to drive multiple portrait or landscape displays for HMI or digital signage.

Hazardous-location design: chassis, connectors and power I/O are adapted to reduce ignition risk and meet C1D2 / ATEX Zone 2 / IECEx requirements.

Power & environment: wide 9–29V DC input with inline protections; suitable for ground installations and mobile/on-board systems. Fanless metal enclosure limits surface temperature and reduces ingress of dust.

Performance & expansion: configurable with Core i5 CPU and Iris Xe graphics; supports industrial networking (Gigabit LAN and optional 2.5GbE/TSN depending on model) and multiple expansion options for OEM integration.

Certifications

• CE
• FCC
• Class 1, Division 2 (C1D2) Group A,B,C,D, T5
• ATEX Grade Zone 2
• IECEx

Features & Use Cases
Designed for remote data acquisition, process visualization and control in refineries, drilling rigs, chemical plants, pharmaceutical production and similar hazardous-area environments. Typical uses include industrial HMI, edge computing, robotics controllers and on-board mobile systems where certified, fanless operation and modular field serviceability are required.

Technical specifications

• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 2 x SO-DIMM (default 4GB; options 8GB / 16GB / 32GB)
• Storage: 1 x M.2 2280 NVMe SSD (128GB default up to 512GB); 1 x removable 2.5" bay (optional 256GB–512GB)
• Ethernet: Intel I211-AT + Intel I219-LM (2 x Gigabit LAN RJ45)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise 64-bit (optional), Windows 11 Pro 64-bit (optional), Linux Ubuntu 22.04 (optional)
• WLAN/Bluetooth: optional (M.2 2230 Key-E slot)
• Expansion: 1 x mPCIe; 1 x PCIe x16 (x4 signal, module max 180x121mm); M.2 2230 Key E; M.2 2280 Key M; PCIe x4 expansion slot
• USB: 4 x USB 3.2 Gen1 (Type-A)
• Serial: 2 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x DP1.4 (default), 1 x HDMI 2.0 (optional)
• Audio: 1 x audio combo (Mic in / Line out)
• Indicators: 1 x storage LED
• Power input: 1 x 9~29V DC via 3-pin terminal block; adapter 12V 84W available
• Power consumption: typical 45W–55W
• Dimensions: 276 x 207 x 60 mm
• Weight: 3.0 kg
• Mounting: VESA mount
• Enclosure: metal housing, fanless
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: -20°C to 60°C
• Storage temperature: -20°C to 60°C
• Accessories: AC adapter 100~240V to DC, power cord, open wire cable with terminal block, VESA screws (typical)
