Box PC IBMH100

embeddedIntel® Atom E3845RS-232

Product Name

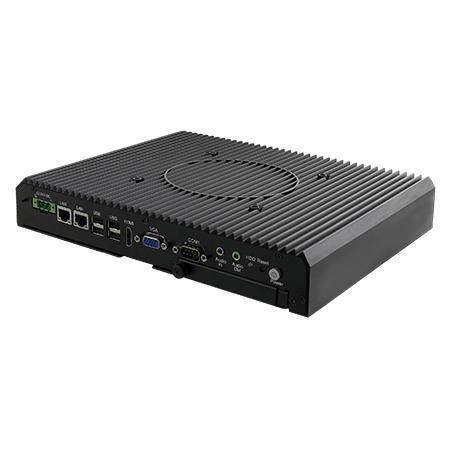

Winmate IBMH100 — Intel® Atom® E3845 M Series Box PC designed for embedded control, OEM equipment and industrial automation

Key Features

• Automatic detection of connected display, no manual settings required
• Tool-free, quick-replaceable 2.5" drive bay
• Wide-range 12–24V DC input for embedded single-board use
• Optional modular front display to convert into a Panel PC
• Internal mSATA SSD and removable 2.5" bay for flexible storage

Overview
Winmate IBMH100 provides a compact, fanless platform based on the Intel® Atom® E3845 for system integrators and OEMs requiring long lifecycle availability and stable hardware integration. It targets industrial deployments where low power consumption, compact footprint and field serviceability are required.

Design & Operation Highlights

• Fanless thermal design using heat-sink/heat-pipe metal housing for reliable operation in dusty environments
• Modular architecture enabling front display installation and easy on-site service
• Support for real-time monitoring and sensor integration via available I/O and optional wireless modules

Certifications
CE, FCC

Accessories (included/available)

• 100–240V AC to DC adapter (12V 80W)
• Power cord
• Open wire cable with terminal block connector
• VESA screws

Technical specifications

• Processor: Intel Atom E3845, quad-core up to 1.91 GHz
• Memory: 2 x SO-DIMM DDR3L 1600 MHz — 4GB default, 8GB optional
• Storage: internal mSATA (64GB/128GB variants), 1 x swappable 2.5" bay (up to 512GB SSD optional)
• Ethernet: 2 x Intel® Gigabit Ethernet (RJ45)
• Serial: 1 x RS232/422/485 (default RS232)
• USB: 4 x USB 2.0 (Type-A)
• Video: HDMI 1.4 (optional), VGA (optional)
• Audio: Line in, Line out
• Expansion: 1 x mPCIe (half-size WiFi), 1 x Mini PCIe, modular front display
• Indicator: 1 x storage LED
• Security: TPM 1.2
• OS (optional): Windows 7 Embedded, Windows 10 IoT Enterprise (64-bit)
• Wireless: optional WLAN / Bluetooth
• Mechanical: 276 x 207 x 45.2 mm; Weight 2.4 kg; Desk mount; Metal housing
• Cooling: Fanless
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C–50°C; Storage temp -10°C–60°C
• Power: 1 x 12–24V DC via 3-pin terminal block; adapter 12V 80W; typical consumption 30W–40W
• Certifications: CE, FCC
