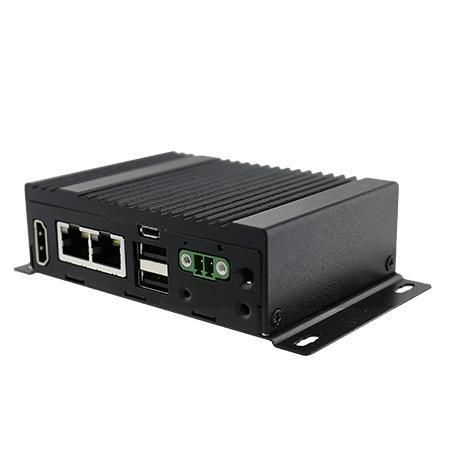

Industrial gateway EACIM20

IoTwirelessWLAN

Short description
Winmate EACIM20 is an A53 Quad-core industrial IoT gateway designed for industrial automation, embedded systems and mission-critical applications. It features a fanless metal housing, compact footprint, multiple mounting options and secure edge-to-cloud connectivity.

Key features

• ARM A53 Quad-core 2.0 GHz
• Fanless metal housing
• 4 GB LPDDR4 memory, 32 GB eMMC onboard storage
• Compact size: 100 x 70 x 31 mm (one layer)
• Mounting: desk, wall, VESA, DIN-Rail
• Microsoft Azure Certified for IoT
• Supports Android (default) or Linux variants

Overview & applications
The EACIM20 provides a compact, fanless platform for reliable operation in constrained spaces, dusty or poorly ventilated environments. It supports secure edge-to-cloud integration for data aggregation, filtering and transmission from multiple edge devices. Typical applications include industrial automation, embedded control, remote data collectors, basic digital signage and IIoT nodes.

Certifications

• Microsoft Azure Certified for IoT
• CE
• FCC
• IP30

Expansion & connectivity
The platform supports optional expansion modules (isolated RS232/422/485, digital I/O, CANbus, USB) and optional wireless modules (WLAN/BT/WWAN). Multiple Gigabit RJ45 LAN ports allow network segmentation and reliable wired communications. Optional HDMI output available on selected SKUs.

Product details

• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4 (soldered)
• Storage: 32 GB eMMC (onboard)
• Security/Management: SOTI MobiControl compliance
• OS: Android 11 (default, upgradable to Android 13); Linux Yocto 5.15.47 (optional); Ubuntu Server 22.04 (optional)
• USB: 2 x USB 2.0 Type-A; 1 x USB2.0 OTG (Micro USB) with ADB support
• LAN: up to 2 x Gigabit RJ45 (variant-dependent)
• Video (optional): 1 x HDMI (up to 1080p/30Hz)
• Power: 9~36 V DC via 2-pin terminal block
• Buttons: Power and Reset

Mechanical

• Dimensions: 100 (W) x 70 (H) x 31 (D) mm (one layer); 100 x 70 x 61 mm (double layer)
• Weight: 0.4 kg (one layer); 0.5 kg (double layer)
• Cooling: fanless design
• Mounting options: desk (default), wall, VESA, DIN-Rail

Environment

• Operating humidity: 30% to 90% RH, non-condensing
• Operating temperature: 0°C to 55°C
• Storage temperature: -15°C to 70°C
• Shock: IEC 60068-2-27 (operating)
• Vibration: IEC 60068-2-64 (operating)

Ordering information
Available SKUs include base and variants with WLAN/BT and/or WWAN, plus optional expansion modules for serial, digital I/O, CANbus and USB. Contact sales for SKU mapping and configuration options.
