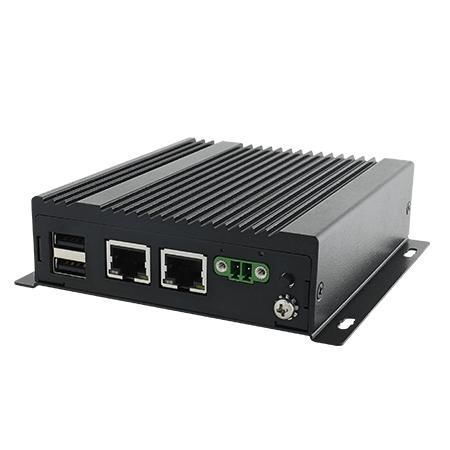

Security gateway EACIL21

industrialIoTIoT Edge

Overview
The EACIL21 is a mini IoT gateway designed for industrial automation, embedded systems and mission‑critical edge deployments. It features an Intel Celeron N3350 (default), fanless cooling, a compact metal housing and multiple mounting options to simplify field installation.

Key Features

• Intel® Apollo Lake Celeron N3350 (default) — optional Pentium N4200
• Fanless thermal design for maintenance‑free operation
• Compact form factor: 100 x 115 x 31 mm (without mounting bracket)
• USB Type‑C (Alt Mode): DisplayPort A/V, USB data and Power Delivery up to 15 W (5V/3A)
• 2 x Gigabit LAN (RJ45) and TPM 2.0 security

Certifications

• CE
• FCC
• Microsoft Azure
• AWS
• IP30

Product highlights

• Compact fanless design optimised for continuous industrial use
• Flexible mounting: desk, wall, VESA and DIN‑rail (depending on SKU)
• USB‑C (Alt Mode) provides DisplayPort A/V, USB data and up to 15 W power delivery for peripheral connectivity
• Targeted for smart factory, smart city, smart retail, smart energy and Industry 4.0 use cases

Technical specifications

• Processor: Intel Celeron N3350 1.1 GHz (up to 2.4 GHz) default; Intel Pentium N4200 optional
• Memory: 4 GB LPDDR3
• Storage: eMMC onboard 64 GB (default); mSATA SSD 128 GB optional
• Ethernet: 2 x Intel® Gigabit Ethernet (2 x RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64‑bit) optional; Linux Ubuntu 20.04 optional
• WLAN / Bluetooth: optional
• Dimensions: 100 x 115 x 31 mm
• Weight: 0.8 kg
• Mounting: desk & wall (default); VESA & DIN‑rail options
• Enclosure: metal housing
• Cooling: fanless
• Operating humidity: 30%–90% RH non‑condensing
• Operating temperature: 0°C to 55°C
• Storage temperature: -15°C to 70°C
• Shock & vibration: IEC 60068‑2‑27 / IEC 60068‑2‑64
• IP rating: IP30
• USB: 2 x USB 2.0 Type‑A; 1 x USB Type‑C (Alt Mode) — DP A/V up to 3840 x 2160@60Hz, USB data, PD up to 15 W (5V/3A)
• Expansion: 1 x full‑size mPCIe; 1 x mini PCIe
• Indicators & buttons: 1 x power LED; 1 x Power button; 1 x Reset button
• Power input: 9–36 V DC via 2‑pin terminal block; optional 12 V 36 W adapter

Accessories

• Quick Start Guide
• Terminal block adapter cables
• Open wire cable with terminal block connector
• WLAN external antenna (selected SKUs)
• VESA mount kit (optional)
• AC‑DC adapter 12V/36W (optional)
• USB Type‑C cables (various optional types)
