EDGE PC EACIL67

boxdesktopembedded

Overview

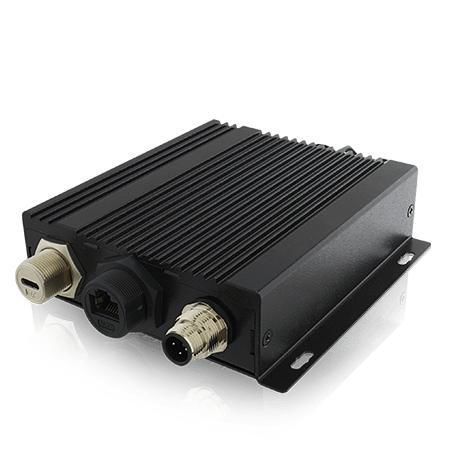

The EACIL67 is an IP67-rated, fanless IoT gateway mini PC built for industrial automation, embedded systems and mission-critical edge applications. Based on the Intel® Apollo Lake platform (Intel® Celeron® N3350 default; Intel® Pentium® N4200 optional), it features a compact metal enclosure, M12 waterproof I/O, USB Type-C (M12) with Alt Mode (DisplayPort/USB/PD), passive cooling and cloud integration certifications for Microsoft Azure and AWS IoT Greengrass.

Key features

• Intel® Celeron® N3350 (1.1 GHz, up to 2.4 GHz) default; Intel® Pentium® N4200 optional
• Full IP67 protection for dust- and water-exposed environments
• M12 waterproof connectors and metal housing
• USB Type-C (M12) Alt Mode: DisplayPort A/V, USB data, Power Delivery up to 15W (5V/3A)
• Fanless passive thermal design
• Compact footprint and multiple mounting options (desk, wall, VESA, DIN-rail)

Certifications

• Microsoft Azure IoT certified
• AWS IoT Greengrass certified
• CE
• FCC
• IP67

Product highlights and usage
The EACIL67 serves as a communication bridge between field sensors/devices and cloud platforms for smart factory, building automation, outdoor monitoring, transportation and other IIoT scenarios. Its metal chassis acts as a heatsink for passive cooling. Optional wireless modules and expansion slots enable application-specific connectivity in harsh conditions with dust, moisture, vibration and shock.

I/O and expansion

• USB: 1 x M12 waterproof USB 2.0; 1 x M12 waterproof USB Type-C (Alt Mode) supporting DisplayPort up to 3840 x 2160@60Hz, USB data and PD up to 15W (5V/3A)
• LAN: 2 x waterproof Gigabit RJ45 (M12) connectors
• Expansion: 1 x full-size mPCIe slot; 1 x mini PCIe
• Indicator: 1 x LED for power
• Power input: 9–36V DC via M12 type connector (waterproof)

Mechanical and mounting

• Dimensions: 100 x 115 x 31 mm (without mounting bracket)
• Weight: approx. 1.0 kg
• Mounting: desk and wall mounting (standard); VESA and DIN-rail options available
• Enclosure: metal housing
• Cooling: fanless (passive)

Environment and reliability

• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Shock: operating, IEC 60068-2-27
• Vibration: operating, IEC 60068-2-64
• IP rating: IP67

System specification (select)

• Processor: Intel® Celeron® N3350 (default) / Intel® Pentium® N4200 (optional)
• Memory: 4 GB LPDDR3
• Storage: eMMC onboard 64 GB (default); mSATA SSD options (64/128 GB)
• Ethernet controller: 2 x Intel® Ethernet Controller (I210-AT referenced)
• Security: TPM 2.0
• Operating systems: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu 18.04 / 20.04 optional
• WLAN / BT: optional via accessory modules

Power

• Power input: 9–36V DC via M12 waterproof connector
• Adapter: 12V 36W (optional)

Accessories

• Quick Start Guide, driver resources
• M12 to open wire DC cable
• WLAN external antenna (for WLAN SKU)
• VESA mount kit (optional)
• M12 to open wire DC with CANBUS cable (optional)
• Waterproof USB Type-C to standard USB Type-C cables (optional)
• Waterproof RJ45 LAN to standard RJ45 cables (optional)

Ordering Information (options)

• EACIL67-101-A464 — variant with WLAN
• EACIL67-104-A464 — variant with 1-port isolated CANBUS

Technical specifications

• Model: EACIL67
• Processor: Intel® Celeron® N3350 (default) / Intel® Pentium® N4200 (optional)
• Memory: 4 GB LPDDR3
• Storage: eMMC 64 GB onboard (default); mSATA SSD options
• I/O: M12 waterproof USB2.0, M12 USB Type-C (DP Alt Mode / USB / PD up to 15W), 2 x waterproof Gigabit LAN (RJ45 M12)
• Expansion: 1 x full-size mPCIe, 1 x mini PCIe
• Power: 9–36V DC (M12)
• Dimensions: 100 x 115 x 31 mm; Weight: ~1.0 kg
• Operating temperature: -20°C to 60°C; IP rating: IP67
• Certifications: Microsoft Azure IoT, AWS IoT Greengrass, CE, FCC
