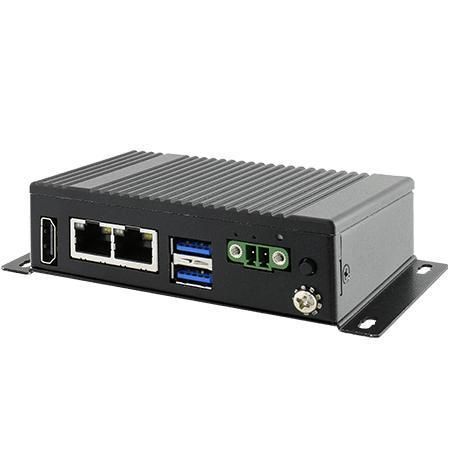

Box computer EACIL20

embeddedIntel® Apollo Lakeintel® celeron® N3350

Overview
The Winmate EACIL20 is a fanless industrial embedded computer powered by an Intel® Celeron® N3350 (Apollo Lake). Designed for industrial automation, embedded systems and mission-critical edge applications, it delivers compact, long-lifecycle hardware with flexible mounting and expansion options for OEMs and system integrators.

Key Features

• Intel® Apollo Lake N3350 1.1 GHz (burst up to 2.4 GHz)
• Fanless cooling for dust-prone and vibration environments
• Compact footprint: 100 x 70 x 31 mm (one layer)
• Modular expansion-board design for flexible I/O
• Multiple mounting options: desk, wall (default), optional VESA and DIN-Rail
• Certified for Microsoft Azure IoT and AWS IoT Greengrass

Certifications

• CE
• FCC
• Microsoft Azure Certified for IoT
• AWS IoT Greengrass Certified
• IP30

Product Highlights

• Small fanless chassis optimized for industrial deployments
• Dual Gigabit Ethernet for separated OT/IT networks
• High-speed USB 3.2 Gen1x1 ports and optional HDMI output
• TPM 2.0 hardware security support
• Supports Windows 10 IoT Enterprise (64-bit) and Ubuntu 20.04 (optional)

Expansion Modules (examples)

• EACWSLT-222: WWAN expansion (single SIM)
• EACWSLT-231: 3-port RS232/422/485 with isolation (default RS232)
• EACWSLT-232: 16-channel digital I/O with isolation
• EACWSLT-233: 2-port CANBUS with isolation
• EACWLST-234: 3-port USB 2.0
• EACWLST-235: 2-port RS232/422/485 with isolation
• EACWLST-236: 2-port Giga-LAN
• EACWLST-237: WWAN expansion (dual SIM)

Mechanical & Environmental
Dimensions: 100 (W) x 70 (H) x 31 (D) mm (one layer); 100 x 70 x 61 mm (double layer). Weight: 0.4 kg (one layer); 0.5 kg (double layer). Enclosure: metal housing. Cooling: fanless design. Operating humidity: 30%–90% RH non-condensing. Operating temperature: 0°C to 55°C. Storage temperature: -15°C to 70°C. Shock & vibration: IEC 60068-2-27 / IEC 60068-2-64. IP rating: IP30.

I/O & Interfaces

• USB: 2 x USB3.2 Gen1x1 (Type-A)
• LAN: 2 x Gigabit LAN (RJ45)
• Video: 1 x HDMI 1.4 (optional)
• Expansion: 1 x full-size mPCIe slot; 1 x mini PCIe; 2 x USB2.0 wafer
• Indicator: LED for power
• Power input: 1 x 9~36V DC via 2-pin terminal block

Control & Buttons

• 1 x Power button
• 1 x Reset button

Storage & Memory

• Memory: 4 GB LPDDR4
• Storage: onboard eMMC 32 GB (default); optional eMMC 64/128 GB; optional SSD 128/256/512 GB

Security & Wireless

• TPM 2.0
• Optional WLAN / Bluetooth / WWAN (requires corresponding SKU or expansion module and antennas)

Power & Accessories

• Power input: 9~36V DC via 2-pin terminal block
• Optional adapter: 12V / 36W
• Accessories: Quick Start Guide, terminal block adapter cable, open-wire DC cable, external WLAN/WWAN antennas, optional VESA and DIN-Rail mounting kits

Applications & Use Cases

• Factory data collection and edge computing (Windows-based SCADA agents)
• Smart building automation (HVAC, lighting control)
• Kiosk controllers and HMIs with HDMI display output
• IIoT gateways, protocol conversion and cloud integration

Technical specifications

• Processor: Intel® Celeron® N3350 1.1GHz (up to 2.4GHz) default; Intel® Pentium® N4200 optional
• Memory: 4 GB LPDDR4
• Storage: eMMC 32 GB onboard (default); optional eMMC 64/128 GB; optional SSD 128/256/512 GB
• Ethernet: 2 x Intel® Gigabit Ethernet controllers
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) / Linux Ubuntu 20.04 (optional)
• Dimensions & weight: see Mechanical & Environmental
• Certifications: CE, FCC, Microsoft Azure Certified for IoT, AWS IoT Greengrass Certified
