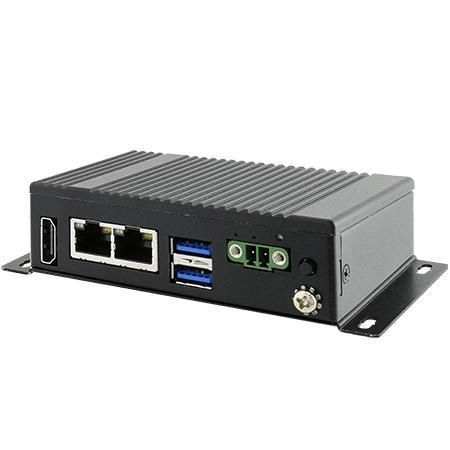

Security gateway EACIEK20

industrialIoTIoT Edge

Overview
Winmate EACIEK20 is an Intel® Celeron® N6211 mini IoT gateway engineered for industrial automation, embedded systems and mission-critical deployments. The device combines a compact fanless metal enclosure with modular top-stack expansion and multiple mounting options to fit constrained spaces and varied installation scenarios.

Key Features

• Intel® Celeron® Elkhart Lake N6211 processor
• Fanless thermal design
• Compact footprint: 100 x 70 x 31 mm (single layer)
• Stackable modular expansion boards
• Mounting: desk, wall, VESA, DIN-Rail
• Cloud certifications: AWS IoT Greengrass, Microsoft Azure IoT

Certifications

• CE
• FCC
• Microsoft Azure Certified for IoT
• AWS IoT Greengrass Certified

Product Highlights
The EACIEK20 provides a palm-sized metal housing with passive cooling for silent operation and reduced dust ingress. Its modular expansion enables configurable I/O (serial, CAN, digital I/O, WWAN, USB) while dual 2.5 Gbps Ethernet ports and TPM 2.0 support secure, high-throughput edge use cases.

Expansion Modules & Options

• EACWSLT-222 WWAN Expansion Board (Single SIM)
• EACWSLT-237 WWAN Expansion Board (Dual SIM)
• EACWSLT-231 3-port RS232/422/485 (default RS232) with isolation
• EACWSLT-235 2-port RS232/422/485 with isolation
• EACWSLT-232 16-channel Digital I/O with isolation
• EACWSLT-233 2-port CANBUS with isolation
• EACWLST-234 3-port USB 2.0

Usage & Target Applications

• Industrial automation and control
• IIoT edge gateway, smart factory and smart city deployments
• Embedded HMI and dashboard appliances
• OEM integrations and system integration projects

Technical specifications

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB LPDDR4 (default), 8 GB LPDDR4 (optional)
• Storage: eMMC onboard 32 GB (default); optional 64/128 GB eMMC; SSD options 128/256/512 GB/1 TB
• Ethernet: 2 x Intel® Ethernet Controller (2.5 Gbps)
• USB: 2 x USB3.2 Gen2 Type-A; 2 x USB2.0 wafer
• M.2: 1 x M.2 2242 B-Key (SATA III SSD or Wi‑Fi module)
• Video: HDMI 2.0 (optional)
• Security: TPM 2.0
• Power: 1 x 9–36 V DC via 2-pin terminal block; AC-to-DC adapter 12 V / 36 W (optional)
• Buttons: Power, Reset
• Dimensions / Weight: 100 x 70 x 31 mm (one layer) / 0.4 kg (one layer)
• Operating: 0°C to 55°C; Storage: -15°C to 70°C; Humidity: 30%–90% RH non-condensing
• Environmental tests: Shock IEC 60068-2-27; Vibration IEC 60068-2-64
• IP rating: IP30
• Enclosure: Metal housing
