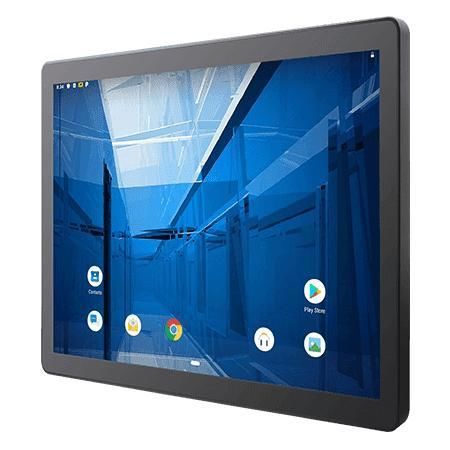

Multitouch screen panel PC R19MG3S-GCM1

PCAP capacitive touch screen19"1280 x 1024

Product Overview
The R19MG3S-GCM1 is a 19-inch G-WIN GC-Series industrial front IP65 PCAP panel PC suitable for machine control, factory automation and operator HMI. Powered by an ARM SoC (2 x A78 2.0 GHz + 4 x A55 2.0 GHz), it provides a true-flat front PCAP touchscreen, fanless cooling and diverse industrial I/O for system integration.

Key Features

• ARM CPU: 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• Fanless cooling (heat sinks & vapor chamber) for quiet, low-power operation
• Front IP65 protection against water and dust
• True-flat, edge-to-edge PCAP touchscreen for easy cleaning
• Industrial I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485 (default RS232), 1 x RJ45 Gigabit LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Product Highlights & Design

• Flat bezel and edge-to-edge glass simplify cleaning and reduce ingress points for liquids and dust.
• Fanless thermal solution with heatsinks and vapor chamber enhances reliability in continuous industrial operation.
• Front IP65 rating makes the unit suitable for harsh production environments where splash or washdown resistance is required.
• Flexible mounting: panel mount and VESA mount options; metal enclosure with plastic bezel.

Certifications

• CE
• FCC

Technical specifications

• Model: R19MG3S-GCM1
• Display Size: 19.0 inches; Touch: Projected Capacitive Multi Touch
• Resolution: 1280 x 1024; Brightness: 250 nits; Contrast Ratio: 1000:1; Viewing Angles: 85/85/80/80
• Active Area: 376.32 x 301.06 mm
• Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
• Memory: 4 GB LPDDR4; Storage: Onboard 32 GB
• OS: Android 13 (default); Linux Yocto 5.15.47 + Qt 5.15 (optional); Ubuntu 22.04 (optional)
• Wireless: WLAN/Bluetooth support (optional)
• Dimensions: 445 x 370 x 51 mm; Cut out: 388 x 280 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing with plastic bezel; Cooling: Fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C–50°C; Storage temp -20°C–60°C
• Shock & Vibration: MIL-STD-810H (shock/vibration)
• IP Rating: Front IP65
• I/O: 2 x USB 2.0 Type A; 1 x USB Type-C (OTG); 1 x RS232/422/485; 1 x LAN 10/100/1000 Mbps; 1 x Micro SD slot; 1 x Micro HDMI (optional); Audio: 2 x Speaker (optional)
• Power: 12V DC via terminal block (default); optional 9–36V; Adapter: 12V 84W; Accessories: Quick Start Guide, AC adapter 12V/50W, power cord, 3-pin terminal block to DC jack
