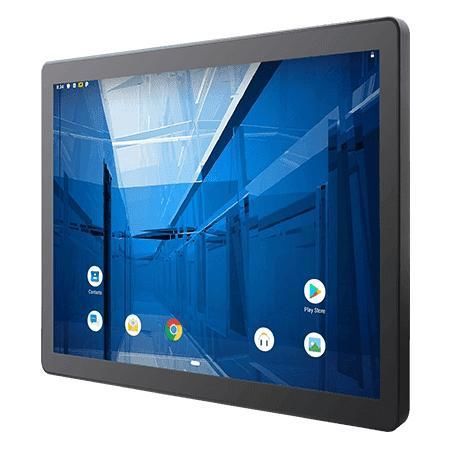

Multitouch screen panel PC R19IM3S-GCM1

PCAP capacitive touch screen19"1280 x 1024

Overview
Winmate R19IM3S-GCM1 is a 19-inch industrial front IP65 panel PC with a projected capacitive (PCAP) multi-touch display, designed for machine control, factory automation and operator HMI. It integrates an ARM A53 Quad-Core processor, fanless cooling and a true-flat front for easy cleaning and hygienic installations.

Key features

• ARM A53 Quad Core 2.0 GHz CPU
• Fanless design for low power and silent operation
• Front IP65 protection against water and dust
• True-flat, edge-to-edge PCAP multi-touch screen
• Multiple I/O including Micro USB OTG, USB Type-A, Micro HDMI (optional), RS232/422/485, RJ45 Gigabit LAN, Micro SD
• Android (default) with optional Linux distributions

Design & usability
The unit features a true-flat bezel to simplify cleaning in industrial and cleanroom environments. The PCAP touch provides accurate multi-touch input for HMI and operator interfaces. Mounting options include panel-mount and VESA for flexible installation (wall, desk, in-vehicle).

Certifications & ruggedness

• CE, FCC certified
• Front protection: IP65
• Tested to MIL-STD shock and vibration levels (references per product page)

I/O and expandability

• USB: 2 x USB 2.0 Type-A; 1 x Micro USB 2.0 OTG
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x 10/100/1000 Mbps RJ45
• Video: 1 x Micro HDMI (optional)
• Audio: 2 x speaker (optional)
• Storage: 1 x Micro SD slot (up to 32 GB); eMMC onboard 32 GB
• Optional: WLAN, Bluetooth

Use cases

• Machine control panels and operator HMIs
• Factory automation dashboards and line monitoring
• Packaging-line and warehouse supervision
• Cleanroom and electronics assembly HMIs
• Plant utility and logistics coordination displays

Technical specifications

• Model: R19IM3S-GCM1
• Brand: Winmate
• Display size: 19.0 inches; Resolution: 1280 x 1024; Brightness: 250 nits; Contrast: 1000:1; Viewing angles: 85/85/80/80
• Active area: 376.32 x 301.06 mm
• Processor: ARM A53 Quad Core 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating system: Android 11 (default, upgradable to Android 13); optional Linux Yocto 5.15.47 (Qt 5.15) or Ubuntu Server 22.04
• WLAN / Bluetooth: optional
• Power: 12V DC via terminal block (default); optional 9~36V; AC adapter options referenced on page
• Mechanical: 445 x 370 x 51 mm; Cut-out: 388 x 280 mm; Mounting: Panel mount & VESA 100 x 100 mm
• Enclosure: Metal housing with plastic bezel; Cooling: fanless
• Operating humidity: 10%–90% RH non-condensing; Operating temp: 0°C–50°C; Storage temp: -20°C–60°C
• Shock / Vibration: MIL-STD-810H (referenced methods)
• IP rating: Front IP65
• Certifications: CE, FCC
• Accessories: Quick Start Guide (hardcopy), AC adapter (12V/50W referenced), power cord, 3-pin terminal block to DC jack, optional speakers
