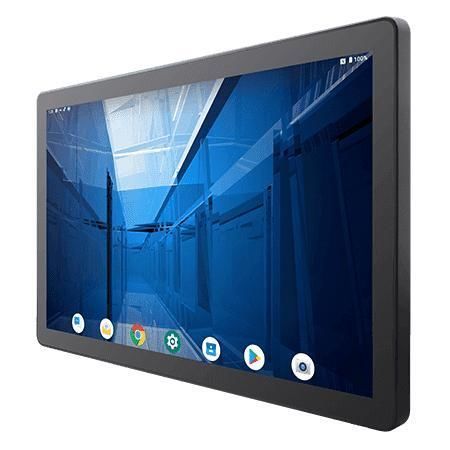

Multitouch screen panel PC W22MG3S-GCA3

PCAP capacitive touch screen21.5"1920 x 1080

Overview
Winmate W22MG3S-GCA3 is a 21.5-inch G-WIN GC-Series front IP65 PCAP Panel PC powered by an ARM SoC (2 x A78 2.0GHz + 4 x A55 2.0GHz). It is built for machine control, factory automation and operator HMI applications that require a front IP65 rating, easy cleaning and fanless low-power operation.

Key features

• ARM SoC: 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Fanless cooling with heat sinks and vapor chambers; ultra-low power consumption
• Front IP65 protection (water and dust resistant)
• True flat, edge-to-edge front surface for simplified cleaning
• Comprehensive I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45 Gigabit LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Design & usability
The unit features a true-flat, edge-to-edge front bezel and a metal housing with plastic bezel to balance industrial robustness and mounting flexibility (panel mount / VESA). The flat front reduces crevices and simplifies maintenance in production environments.

Cooling & power efficiency
Fanless thermal design using heat sinks and vapor chambers ensures quiet operation and reliable thermal management. Default power input is 12V DC via terminal block; optional wide-range 9~36V input is available. AC adapter and accessory options included per configuration.

Ruggedness & environmental resilience

• Front IP65 rating against splashes and dust
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• Operating temperature: 0°C to 50°C; Storage: -20°C to 60°C; Operating humidity: 10%–90% RH non-condensing

Certifications

• CE
• FCC

Applications

• Machine control panels and operator HMIs
• Factory automation and SCADA front-ends
• OEM integration and embedded operator interfaces

Technical specifications

• Model: W22MG3S-GCA3
• Display - Size: 21.5 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Display - Resolution: 1920 x 1080
• Display - Brightness: 250 nits
• Display - Contrast Ratio: 3000:1
• Display - View Angles: 89/89/89/89
• Display - Active Area: 476.64 x 268.11 mm
• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Memory: 4 GB LPDDR4
• Storage: Onboard 32 GB
• Operating System: Android 13 (default); Linux Yocto 5.15.47 with Qt 5.15 (optional); Linux Ubuntu 22.04 (optional)
• Wireless: WLAN / Bluetooth support (optional)
• Dimensions: 530 x 322 x 55 mm; Cut out: 457 x 250 mm
• Mounting: Panel mount / VESA mount
• Enclosure: Metal housing with plastic bezel
• Cooling System: Fanless (heat sinks and vapor chambers)
• Power: 12V DC via terminal block (default); 9~36V optional; Adapter: 12V 84W (accessory)
• USB: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x LAN 10/100/1000 Mbps
• Video: 1 x Micro HDMI output (optional)
• Audio: 2 x speaker (optional)
• SD Card: 1 x Micro SD slot
• Accessories: Quick Start Guide (hardcopy), AC adapter, power cord, 3-pin terminal block to DC jack
• IP rating: Front IP65
• Certifications: CE, FCC
