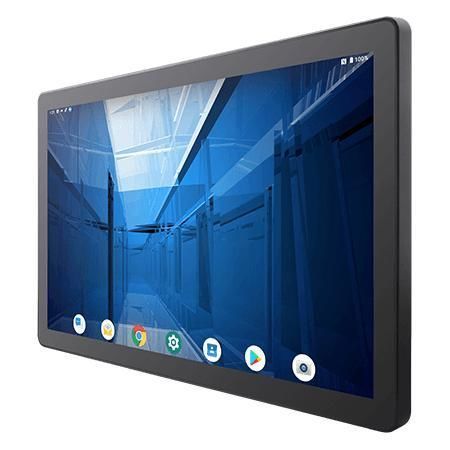

Multitouch screen panel PC W24MG3S-GCA2

PCAP capacitive touch screen24"1920 x 1080

Overview
Winmate W24MG3S-GCA2 is a 24" G-WIN GC-Series PCAP Panel PC engineered for machine control, factory automation and operator HMI. It integrates an ARM SoC (2 x A78 + 4 x A55), a true flat edge-to-edge front with Front IP65 protection, fanless cooling and a broad set of I/O for industrial deployments. Android 13 is the default OS with optional Linux variants.

Key Features

• Processor: ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
• Fanless cooling with heat sinks and vapor chamber for quiet, reliable operation
• Front IP65 for protection against water splashes and dust
• True flat, edge-to-edge front surface for easy cleaning and hygiene
• I/O: 1 x USB Type-C (OTG), 2 x USB 2.0 Type A, 1 x RS232/422/485, 1 x RJ45 (Gigabit), 1 x Micro SD slot, 1 x Micro HDMI (optional)

Product Highlights
The GC series emphasizes maintainability and reliability in industrial environments. The true-flat front reduces crevices where contaminants accumulate and simplifies cleaning routines. Fanless thermal design (heat sinks + vapor chamber) delivers low noise and energy-efficient thermal management suitable for 24/7 operation. Front IP65 increases durability in washdown or dusty locations. Extensive I/O supports sensors, PLCs and peripherals for flexible integration.

Certifications
CE, FCC

Technical specifications

• Display: 24.0 inches; PCAP multi-touch; Resolution 1920 x 1080; Brightness 250 nits; Contrast 3000:1; Active area 527.04 x 296.46 mm; Viewing angles 89/89/89/89
• System: CPU ARM 2 x A78 + 4 x A55; Memory 4 GB LPDDR4; Storage onboard 32 GB; OS Android 13 (default); Linux Yocto / Ubuntu optional
• Mechanical: Dimensions 588 x 358 x 55 mm; Cut-out 388 x 280 mm; Panel mount / VESA mount; Metal housing with plastic bezel
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C to 50°C; Storage temp -20°C to 60°C; Shock/Vibration MIL-STD-810H
• IP rating: Front IP65
• I/O: 2 x USB 2.0 Type A; 1 x USB Type-C (OTG); 1 x RS232/422/485 (default RS232); 1 x LAN 10/100/1000 Mbps; 1 x Micro HDMI (optional); 1 x Micro SD slot; Optional speakers
• Power: Default 12V DC via terminal block; 9~36V optional; Adapter example 12V 84W
• Accessories: Quick Start Guide (hardcopy), AC adapter 12V/50W, power cord, 3-pin terminal block to DC jack
