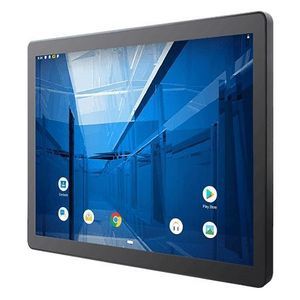

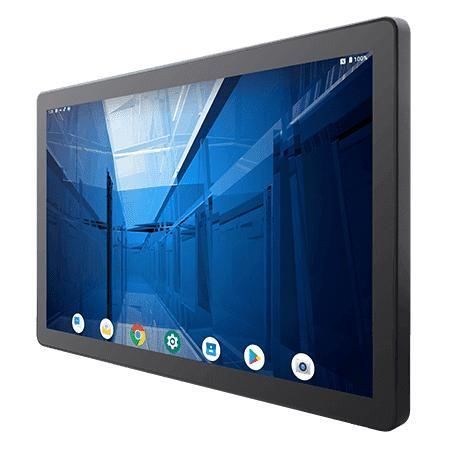

Multitouch screen panel PC W22IM3S-GCA3

PCAP capacitive touch screen21.5"1920 x 1080

Overview
The Winmate W22IM3S-GCA3 is a 21.5 in industrial Panel PC from the G-WIN GC series, built for HMI, machine control and factory automation. It features an ARM A53 quad-core CPU, projected capacitive (PCAP) multi-touch, fanless cooling and a Front IP65-rated true flat bezel for wet/dusty environments.

Key Features

• ARM A53 Quad Core 2.0 GHz processor
• 21.5 in Full HD (1920 x 1080) with PCAP multi-touch
• Fanless design for low power and reliable field operation
• Front IP65 protection and edge-to-edge true-flat surface
• Rich I/O: 2 x USB 2.0 Type A, 1 x Micro USB OTG, 1 x RS232/422/485, 1 x RJ45, 1 x Micro SD, 1 x Micro HDMI (optional)
• OS support: Android (default) or optional Linux variants

Design & Usability
True-flat edge-to-edge front improves cleanability and reduces particle accumulation in industrial settings. PCAP multi-touch provides responsive operator input for HMI and on-screen control. Mounting options include panel cut-out and VESA for wall, desk or in-vehicle installation, allowing flexible deployment while keeping I/O accessible.

Certifications & Compliance

• CE
• FCC

Technical summary
Display: 21.5 in, 1920 x 1080, 250 nits, contrast 3000:1, viewing angles 89/89/89/89
System: ARM A53 Quad Core 2.0 GHz, 4 GB LPDDR4, 32 GB eMMC onboard, Android 11 (default, upgradable), optional Linux Yocto/Ubuntu
Mechanical: Dimensions 530 x 322 x 55 mm; cut-out 457 x 250 mm; metal housing with plastic bezel; panel & VESA mount
Environment: Operating 0°C to 50°C, storage -20°C to 60°C, operating humidity 10%–90% RH non-condensing; shock & vibration per MIL-STD-810H; Front IP65

I/O Ports & Multimedia

• USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x Gigabit LAN (10/100/1000 Mbps)
• Video: 1 x Micro HDMI (optional)
• Audio: 2 x speaker (optional)
• SD: 1 x Micro SD slot (up to 32 GB)

Power
Standard power input 12V DC via terminal block; optional 9–36V input. Adapter options vary by configuration (e.g. 12V 50W or 12V 84W depending on model).

Applications & Notes
This Panel PC is intended for industrial HMI, machine control panels, factory automation and OEM integrations where long-term availability, reliable fanless operation and field serviceability are required.

Technical specifications

• Model: W22IM3S-GCA3
• Display: 21.5" FHD (1920x1080), 250 nits, PCAP multi-touch
• Processor: ARM A53 Quad Core 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: 32 GB eMMC onboard
• OS: Android 11 (upgradeable), optional Linux Yocto/Ubuntu
• I/O: 2x USB 2.0, 1x Micro USB OTG, 1x RS232/422/485, 1x RJ45, 1x Micro SD, 1x Micro HDMI (optional)
• Dimensions: 530 x 322 x 55 mm; cut-out 457 x 250 mm
• Operating temp: 0°C to 50°C; Storage temp: -20°C to 60°C
• Front IP rating: IP65
• Certifications: CE, FCC
